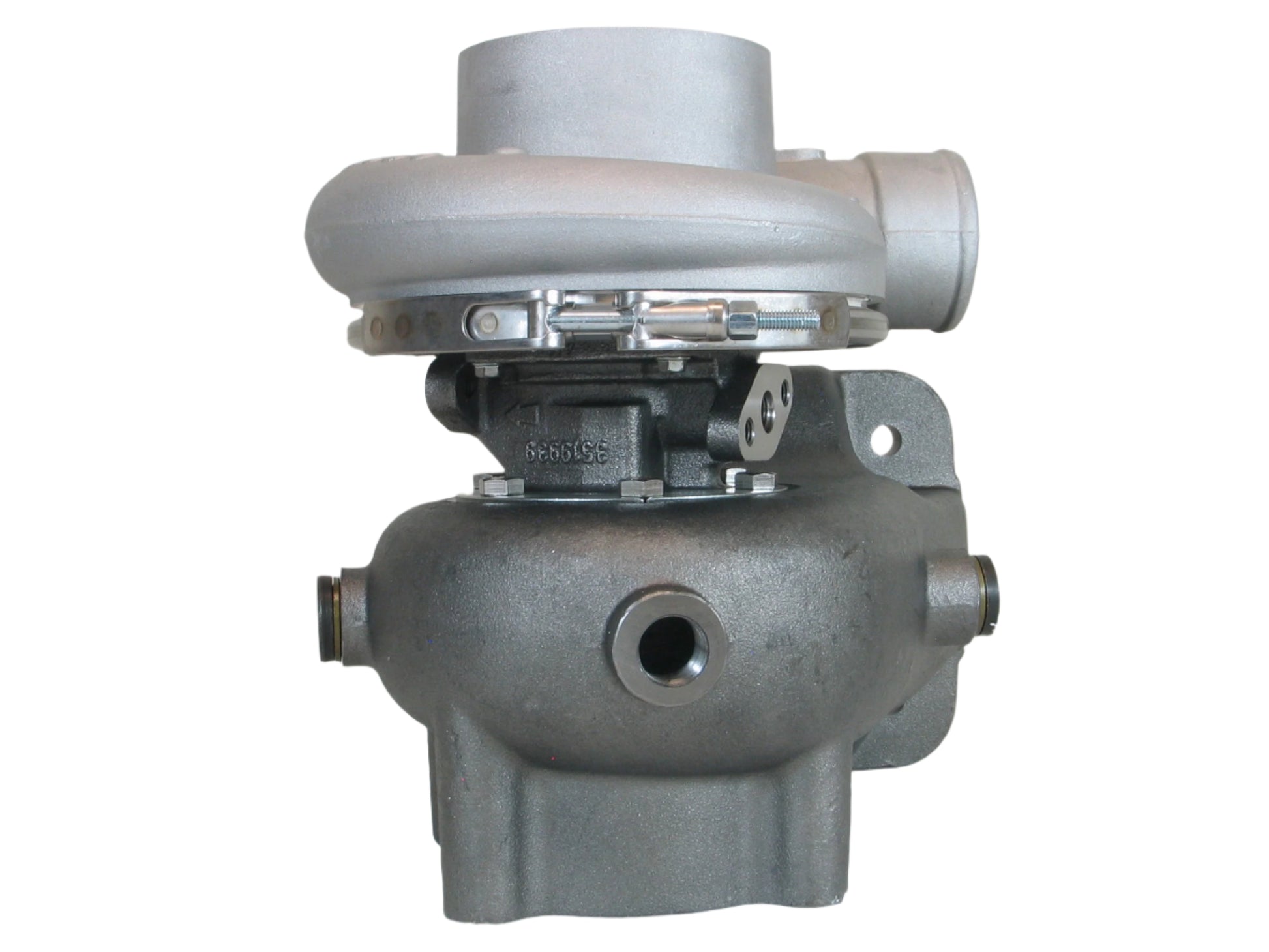

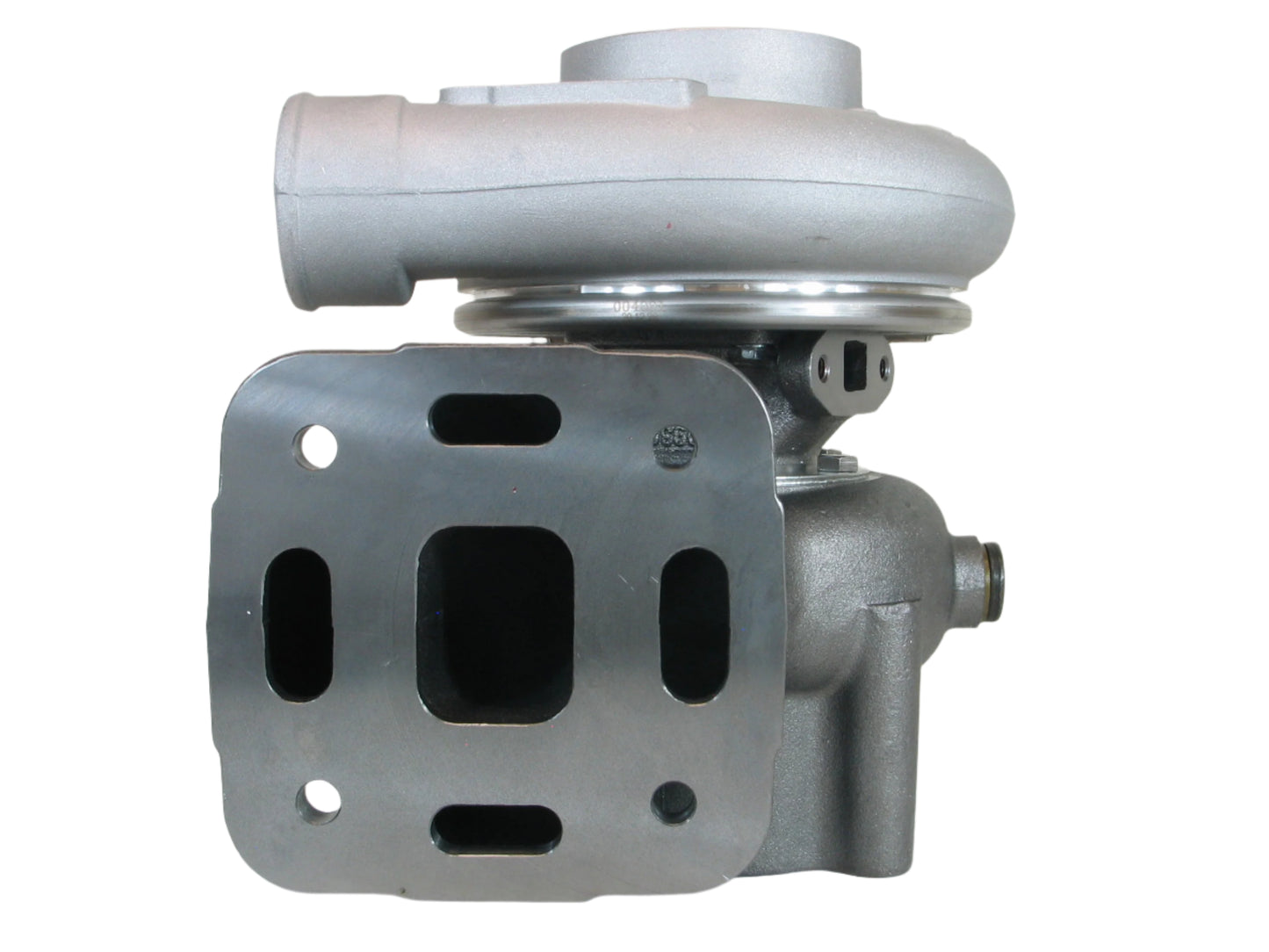

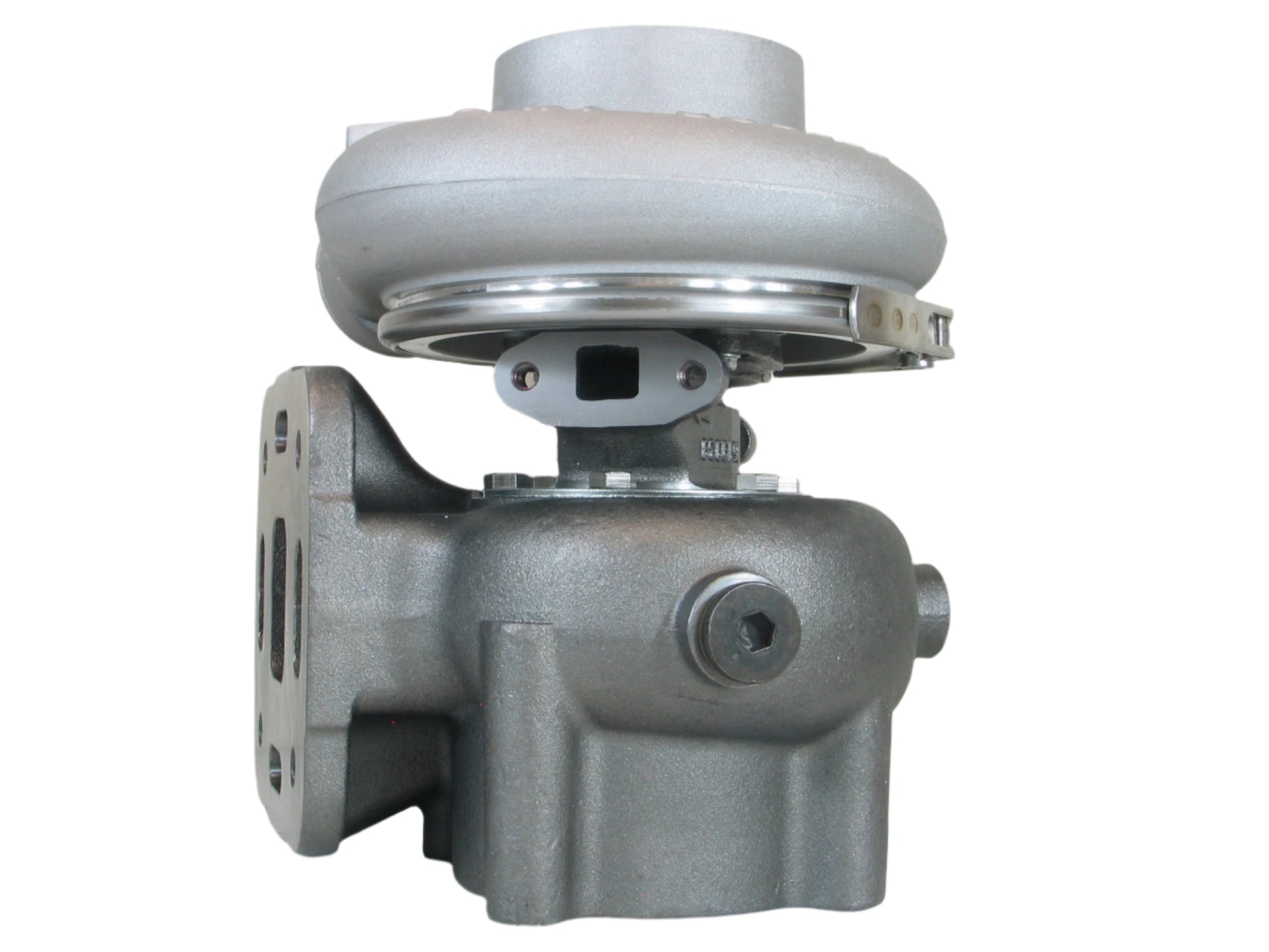

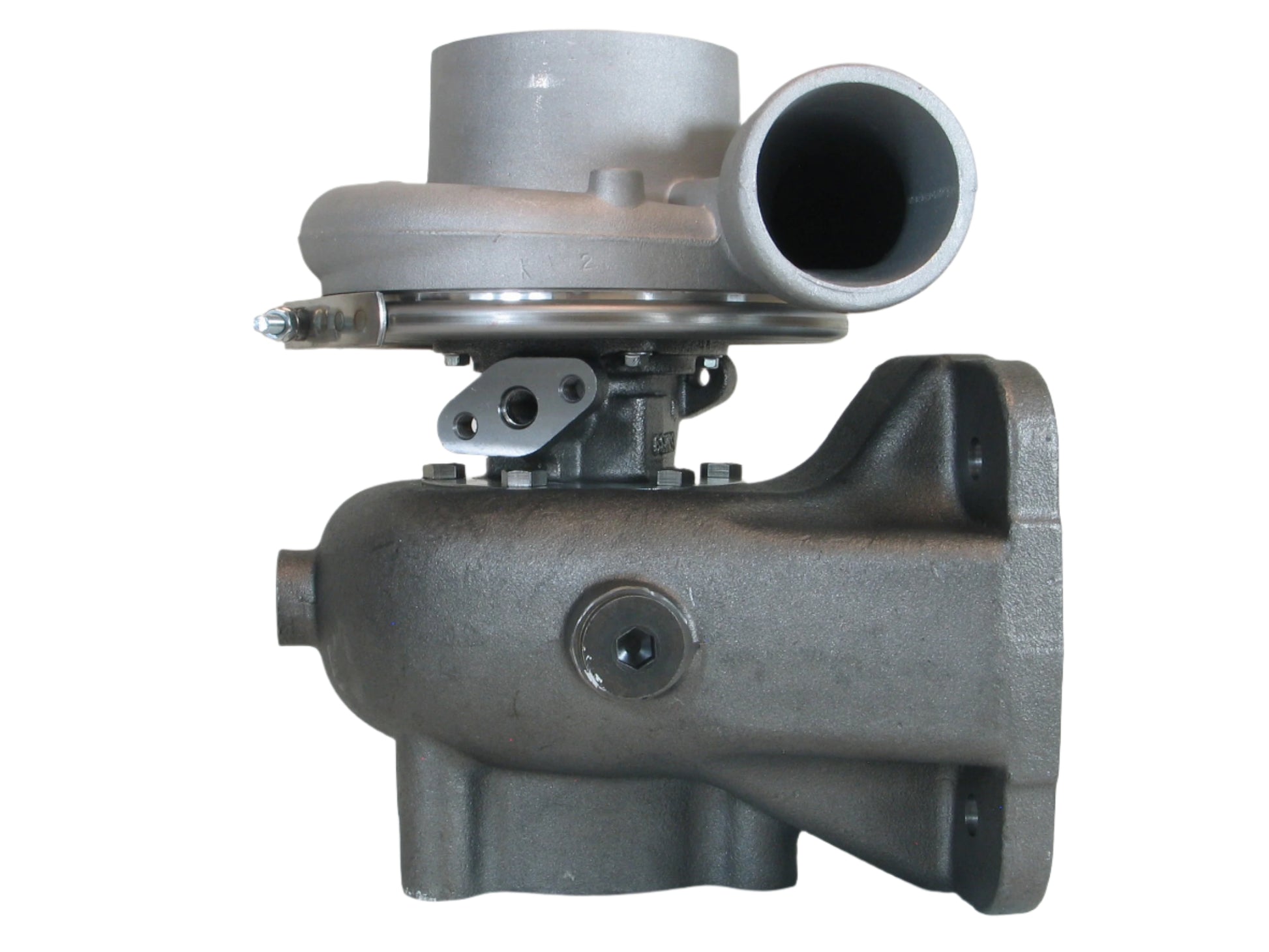

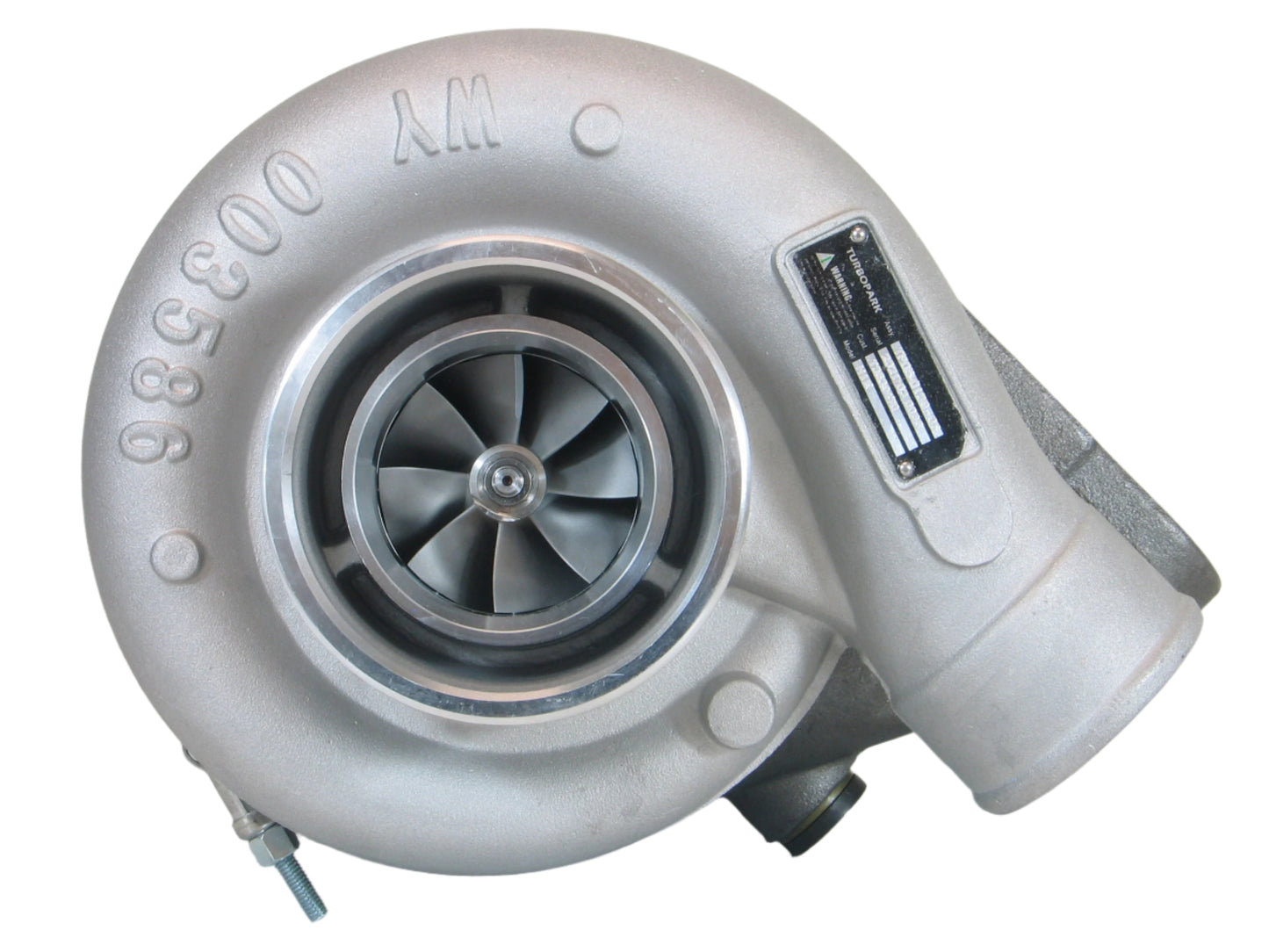

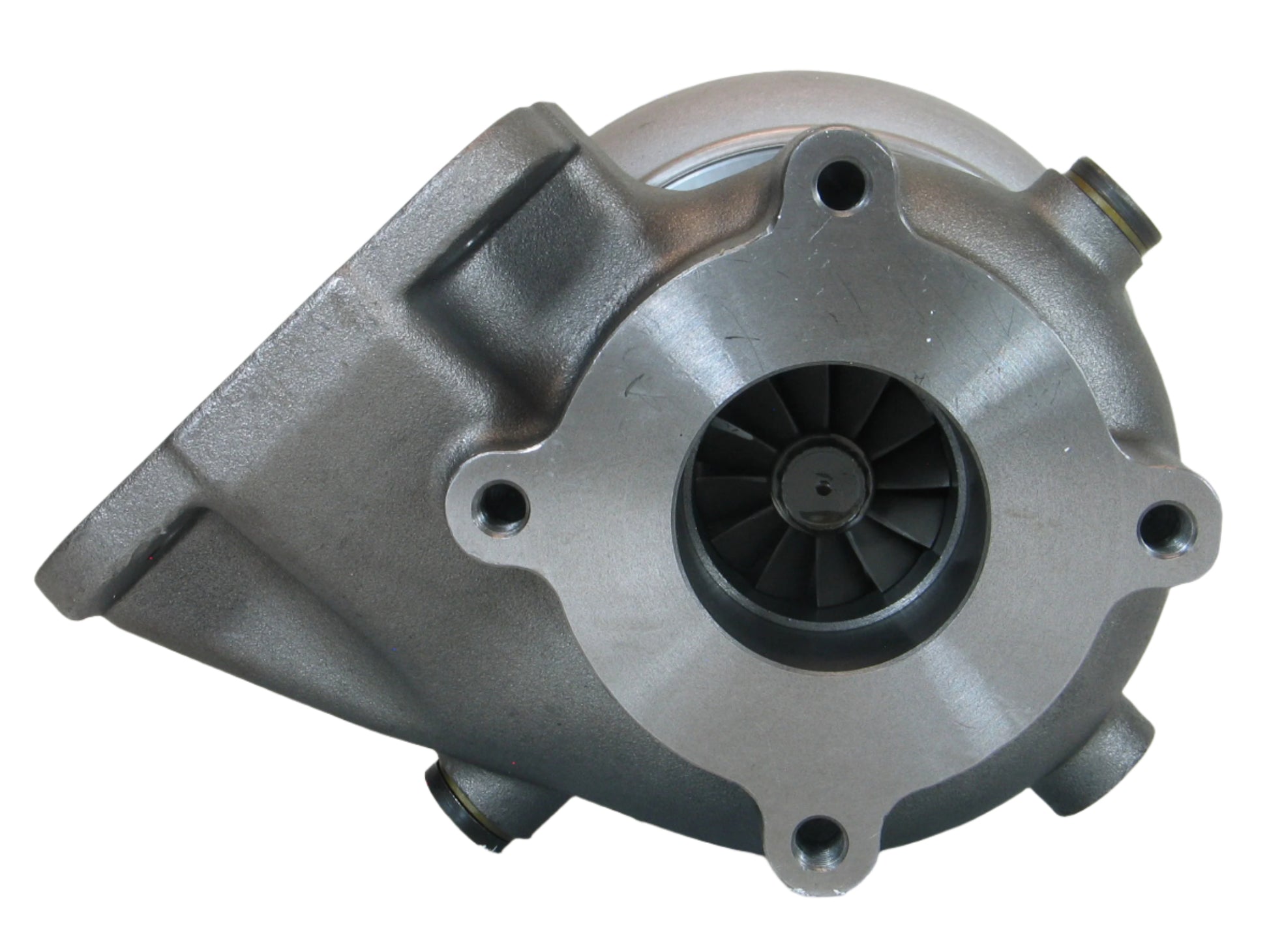

NEW H1E Turbo Marine Various Cummins 4BTAM 6BT 6BTAM 5.7L Diesel Engine 3539470

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

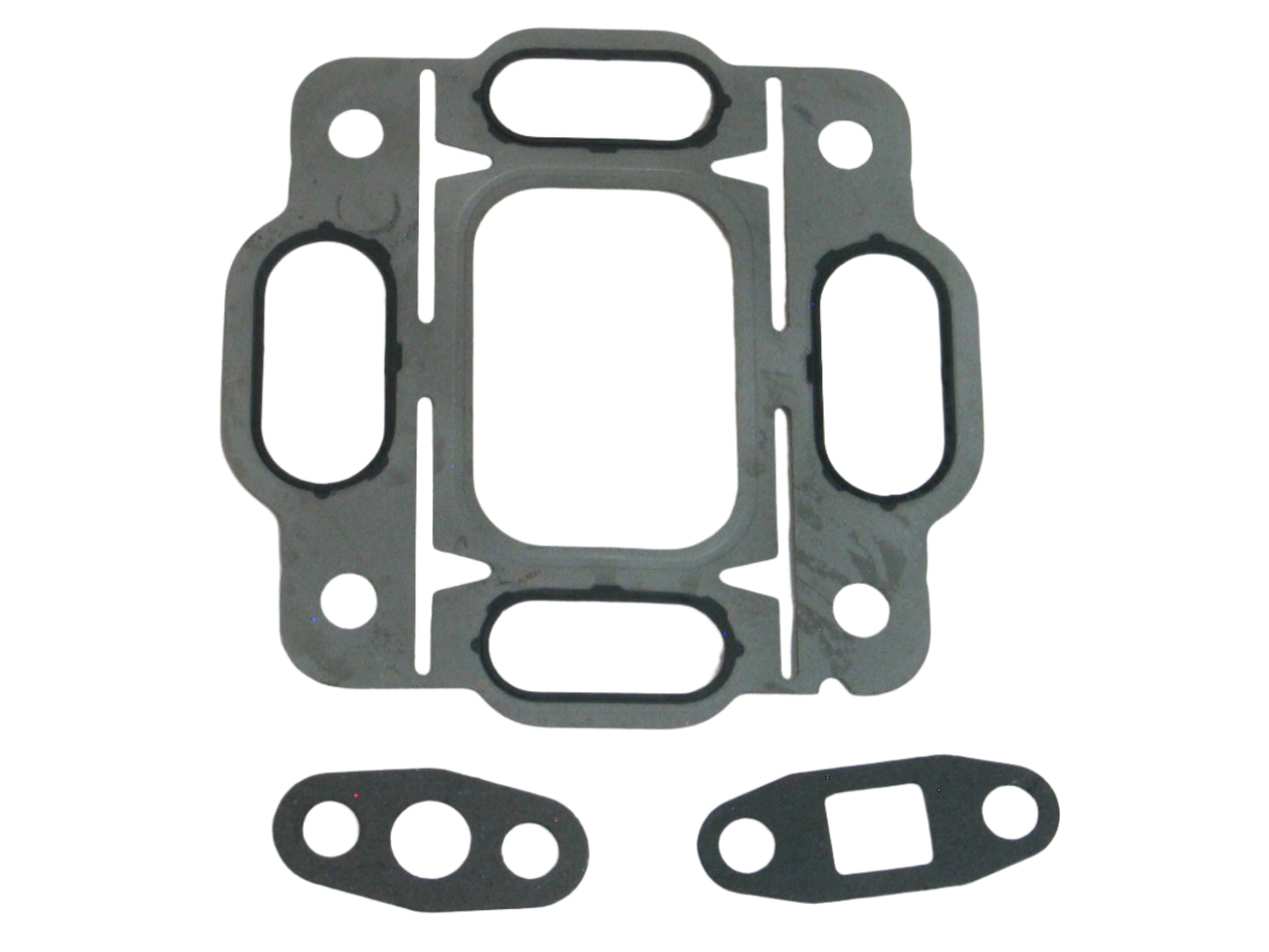

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3539470
Interchangeable Number: 3525688, 3525689H, 3528781, 3530737, 353103500, 3531035H, 3532208, 3533735, 3534375, 3534376H, 3538071, 3538124, 3538777, 3538827, 3538829, 3802304NX, 3802304RX, 3802590NX, 3802590RX, 3802595NX, 3802595RX, 3802832NX, 3802832RX, 3802883NX, 3802883RX, 3802884, 3802884NX, 3802884RX, 3802910NX, 3802910RX
OEM Number: 3525689, 3528782, 3530743, 3531035, 3533736, 3533737, 3534376, 3535458, 3535459, 3535534, 3535535, 3538072, 3538125, 3538778, 3538828, 3538830, 3539471, 3802304, 3802590, 3802595, 3802832, 3802883, 3802910
Turbo Model: H1E, H1E-8274AE/J16S3, H1E-8274AX/J16S3

Year: 1988-
Engine: 4BTA, 4BTAM, 6BT, 6BTAM, 6L
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm
Fuel: Diesel

Angle α (Compressor Housing): 200/345°
Angle β (Turbine Housing): 301/15°
Back Plate: 3522801 (167543)
Bearing Housing: 3530591 (3500591, 3500592, 3530592)(Oil Cooled)(1152301450)
CHRA: 3545696 (3545696H)
Compressor Wheel: 3599644 (Ind. 55.98 mm, Exd. 81.78 mm, Trim 6.37, 8+8 Blades, Super Back)
Gasket (Oil Inlet): 210850 (392196100)(Inox Steel)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 210849 (3921926, 3916300, 3905033)(Stainless Steel)(Marine)
Heat Shield: 3519302 (3519304, 167550)(1152301340)
Repair Kit: 3545652 (4027309)(3802148, 318393)(1152301750)
Turbine Housing: Water Cooled
Turbine Wheel: 3525687 (3536624)(Ind. 75 mm, Exd. 62 mm, 12 Blades)

Application:
1988- Marine, Various with Cummins 4BTAM, 6BTAM Engine
1995- Marine with Cummins 6BT Engine

TurboTurbos Part Number: TP05-0138-36

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
