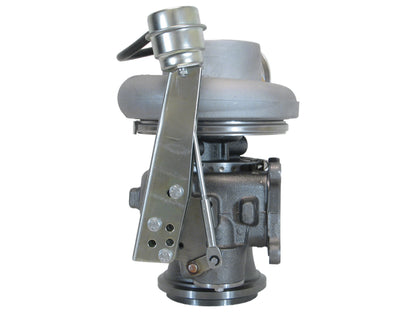

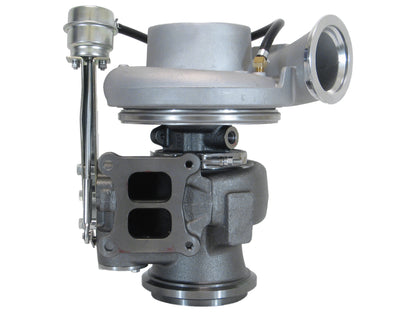

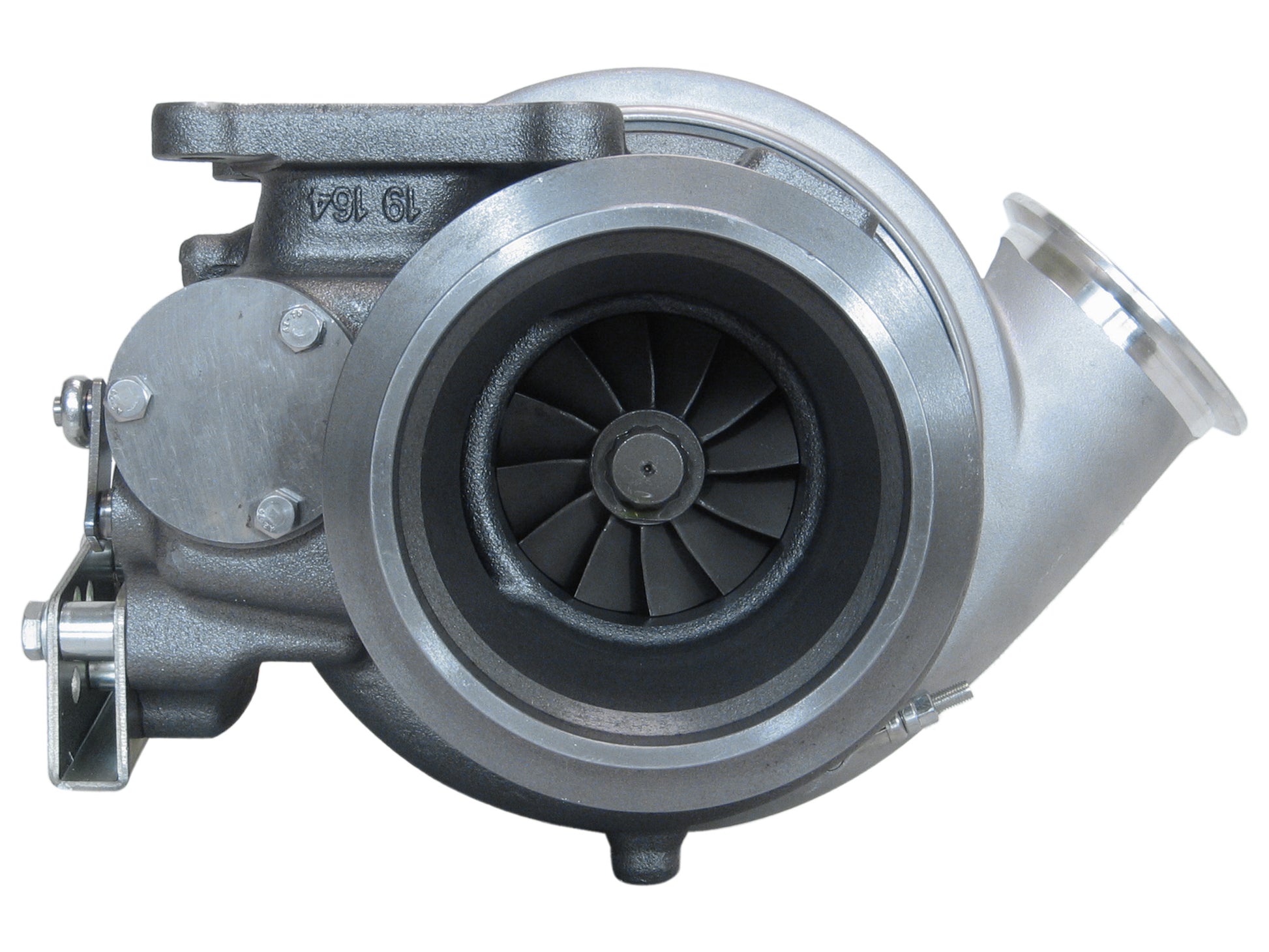

NEW HX55W Turbo Industrial Cummins QSM 2/3 ISM M11 QSM11 4037628 4037627
NEW HX55W Turbo Industrial Cummins QSM 2/3 ISM M11 QSM11 4037628 4037627
SKU:TP05-0154-36
Regular price
$1,349.00
Regular price
$0.00
Sale price
$1,349.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.

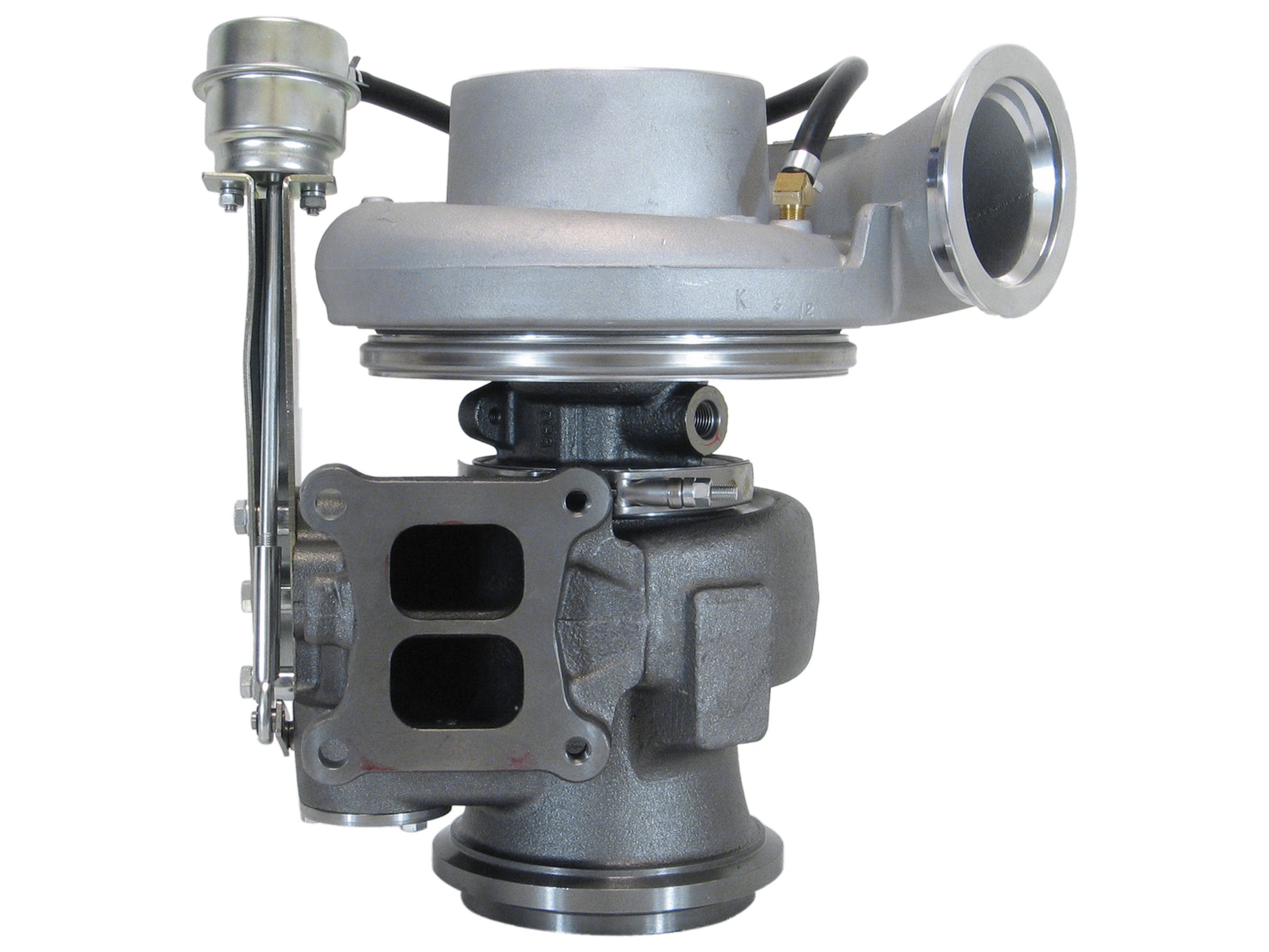

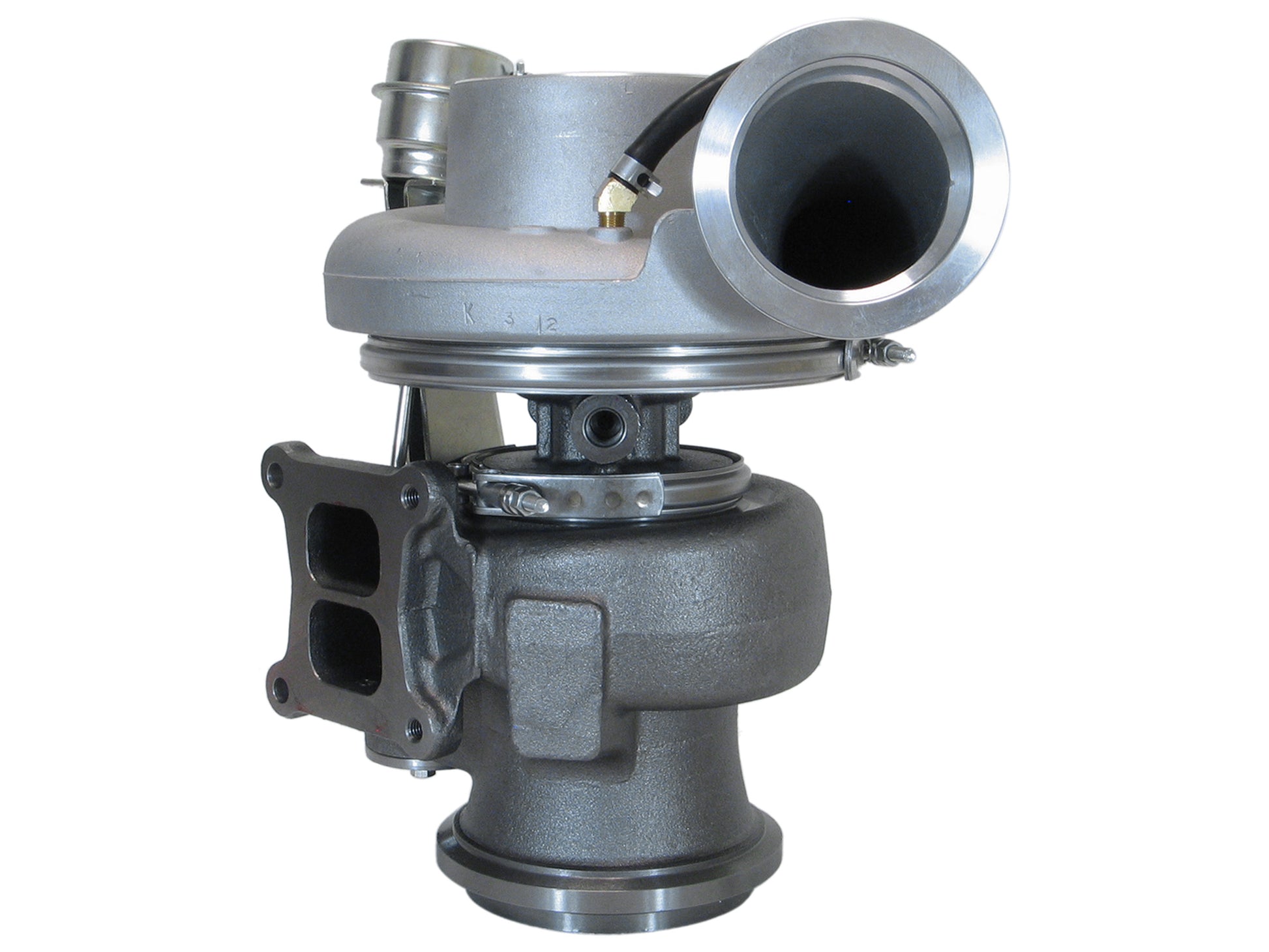

NEW DIRECT REPLACEMENT TURBOCHARGER
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

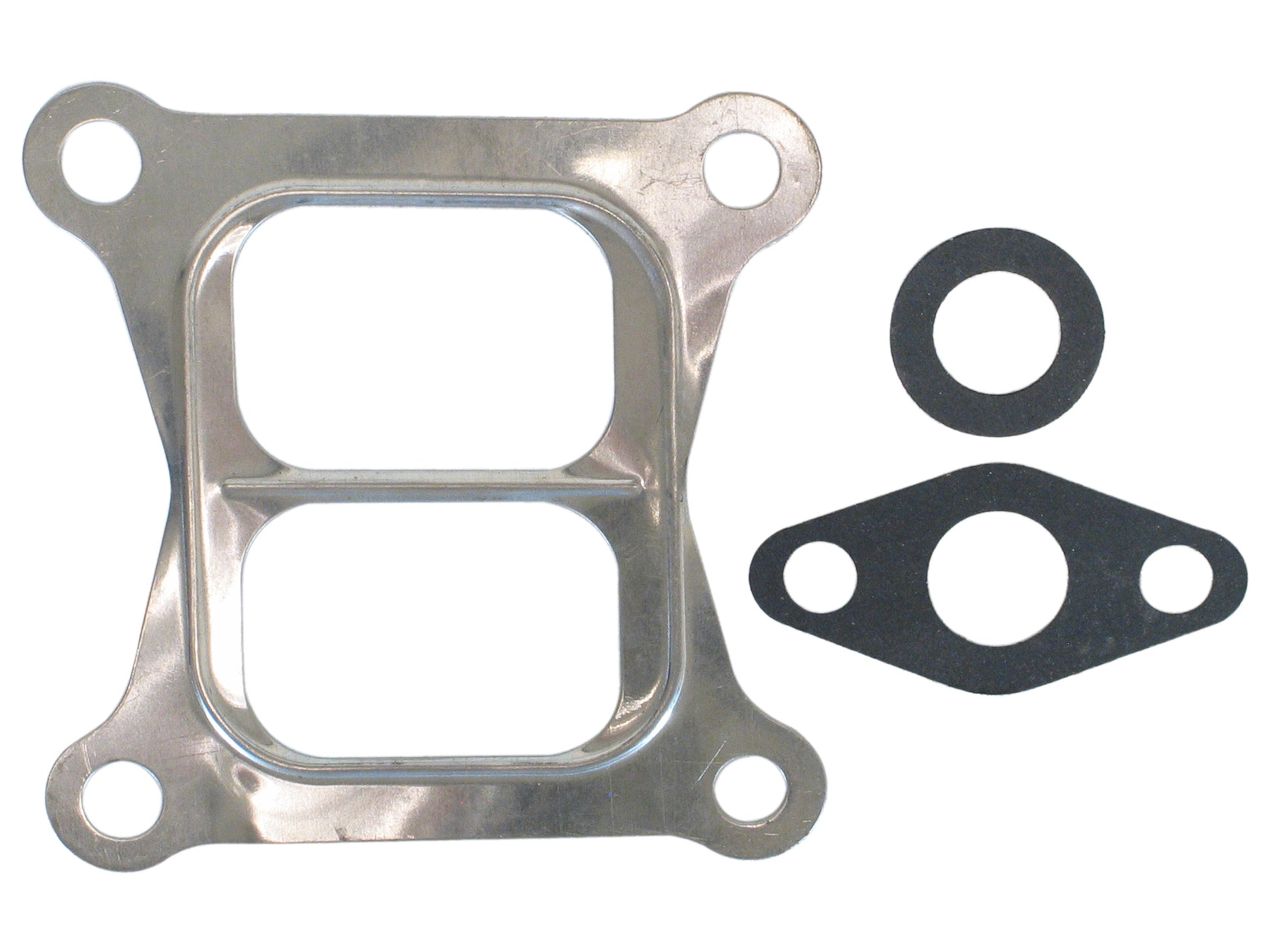

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4037627
Interchangeable Number: 4037628H, 408985900
OEM Number: 4037628, 4089859
Turbo Model: HX55W, HX55W-C98K72RU/C86L90PH19J-W2
Year: 2003-
Engine: ISM, M11, QSM 2/3, QSM11
Engine Manufacturer: Cummins
Emission Standard: Tier 3
Fuel: Diesel
Angle α (Compressor Housing): 330°
Angle β (Turbine Housing): 270°

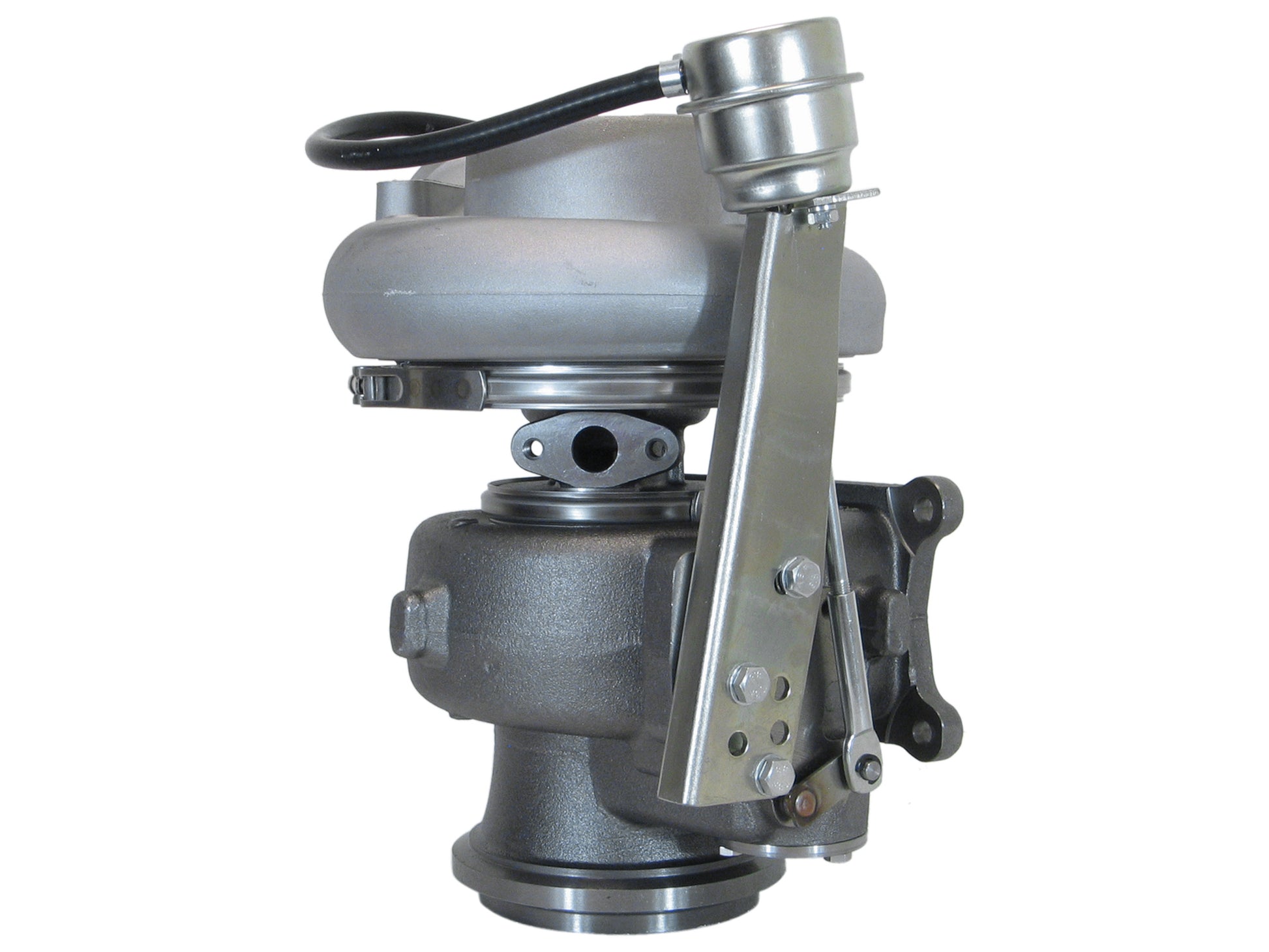

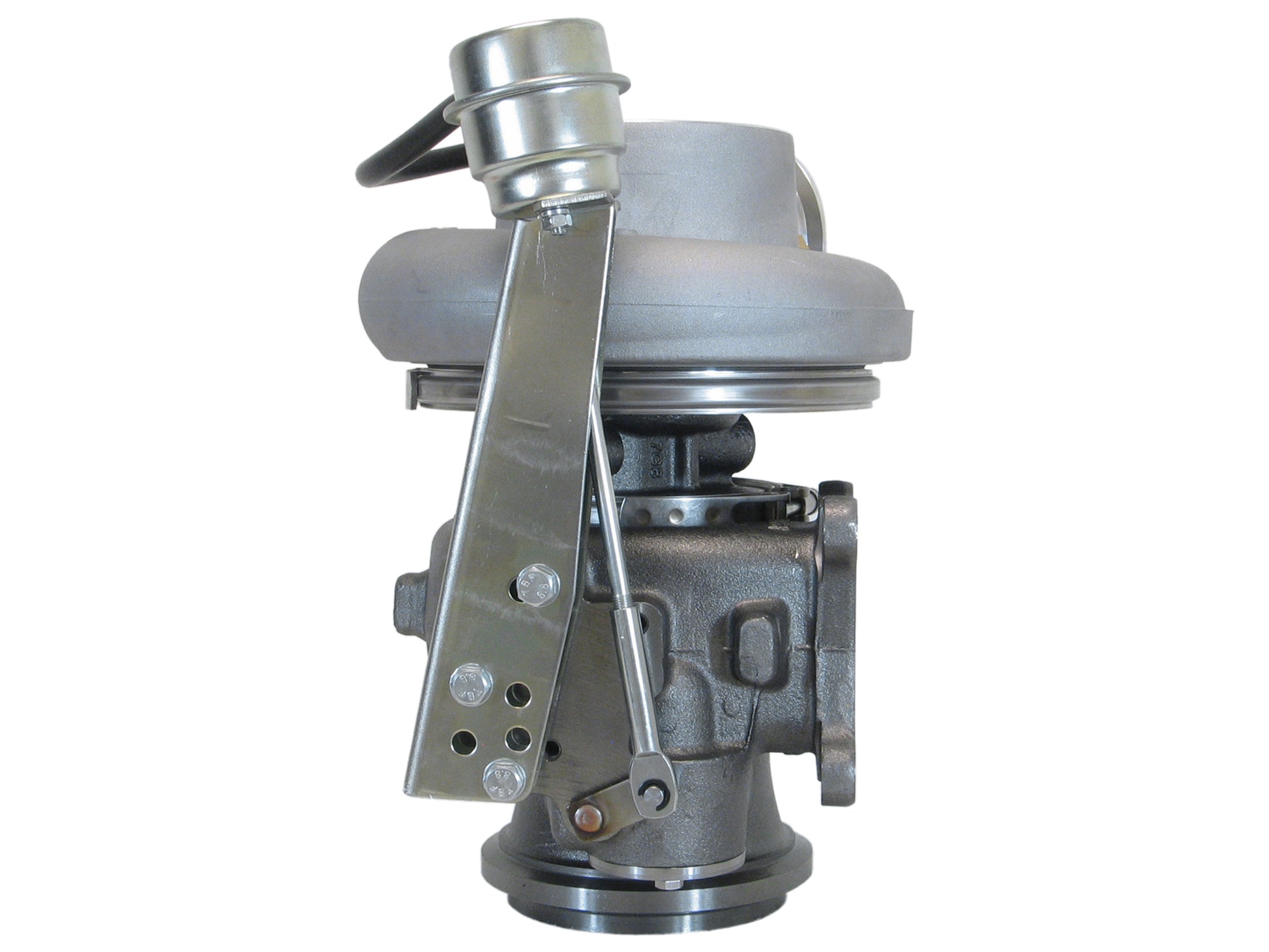

Actuator: 4037623 (4037622, 4030835)
Back Plate: 3528096 (1153055300)
Bearing Housing: 3535575 (3535575H, 353557500, 3535704)(Oil Cooled)
Bracket Kit: 4030841H
CHRA: 4032690 (4032690H, 3768413)
Compressor Cover: 4036914

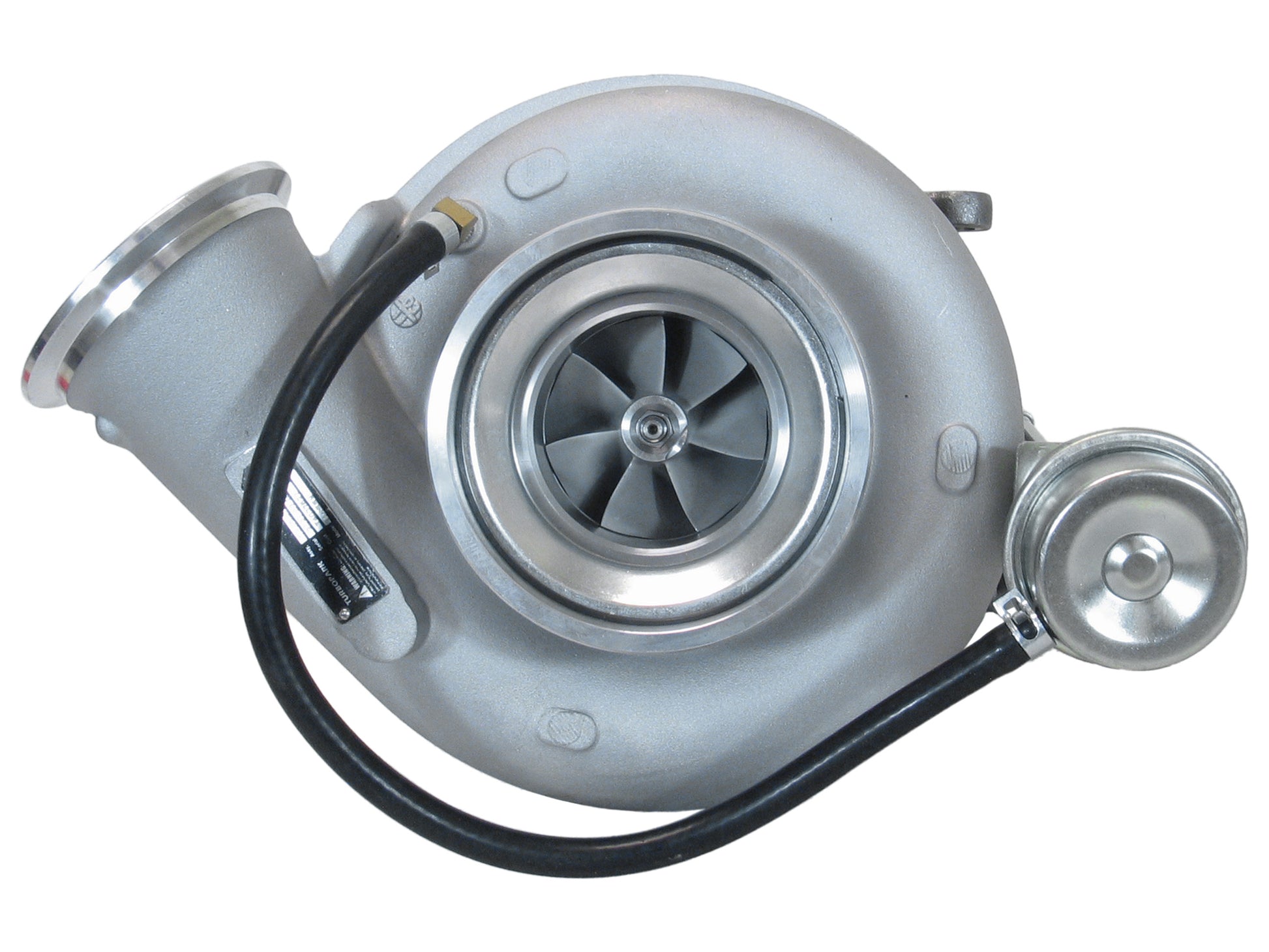

Compressor Wheel: 4035887 (4035887H, 3596135, 4036317)(Ind. 71 mm, Exd. 99.01 mm, Trim 51, 6+6 Blade)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 2405022, 210847)(1900000006)(Inox Steel)
Gasket (Turbine Outlet): 210245 (Inox Steel)
Gasket Kit: 4032517 (3800279H)
Heat Shield: 3529846 (3533038)(1153055340)
Repair Kit (Major): 3580762 (3580762H, 3575181, 3533038)(1153055750, 5000020023)
Turbine Housing: 3592774

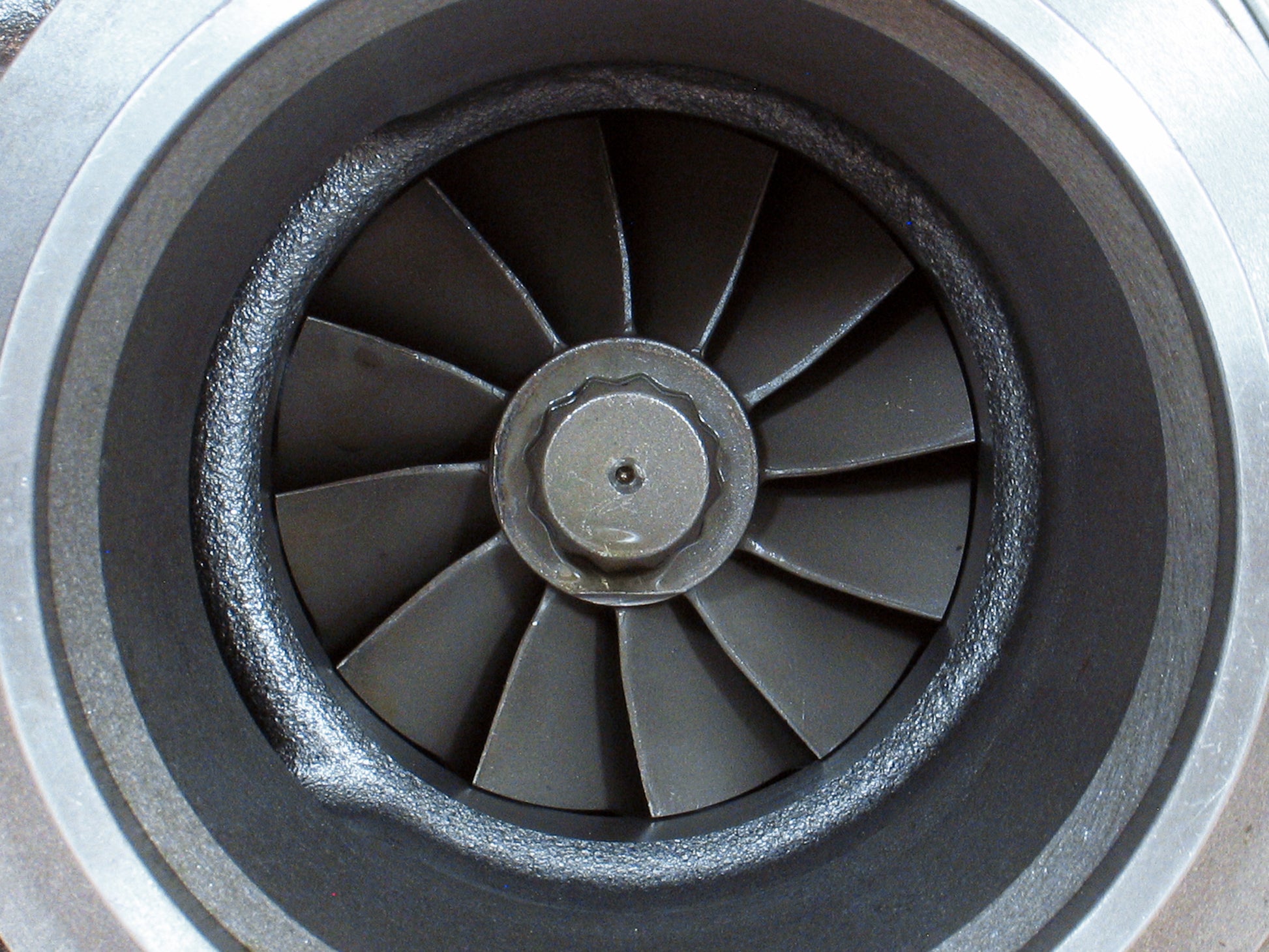

Turbine Wheel: 3535983 (3535983H)(Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436)
Turbocharger Kit: 4037628H
Application:
2003- Various with Cummins QSM 2/3 Engine
Industrial with Cummins QSM 2/3 Engine
TurboTurbos Part Number: TP05-0154-36
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4037627
Interchangeable Number: 4037628H, 408985900
OEM Number: 4037628, 4089859
Turbo Model: HX55W, HX55W-C98K72RU/C86L90PH19J-W2
Year: 2003-
Engine: ISM, M11, QSM 2/3, QSM11
Engine Manufacturer: Cummins
Emission Standard: Tier 3
Fuel: Diesel
Angle α (Compressor Housing): 330°
Angle β (Turbine Housing): 270°
Actuator: 4037623 (4037622, 4030835)
Back Plate: 3528096 (1153055300)
Bearing Housing: 3535575 (3535575H, 353557500, 3535704)(Oil Cooled)
Bracket Kit: 4030841H
CHRA: 4032690 (4032690H, 3768413)
Compressor Cover: 4036914
Compressor Wheel: 4035887 (4035887H, 3596135, 4036317)(Ind. 71 mm, Exd. 99.01 mm, Trim 51, 6+6 Blade)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 2405022, 210847)(1900000006)(Inox Steel)
Gasket (Turbine Outlet): 210245 (Inox Steel)
Gasket Kit: 4032517 (3800279H)
Heat Shield: 3529846 (3533038)(1153055340)
Repair Kit (Major): 3580762 (3580762H, 3575181, 3533038)(1153055750, 5000020023)
Turbine Housing: 3592774
Turbine Wheel: 3535983 (3535983H)(Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436)
Turbocharger Kit: 4037628H
Application:
2003- Various with Cummins QSM 2/3 Engine
Industrial with Cummins QSM 2/3 Engine
TurboTurbos Part Number: TP05-0154-36
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
