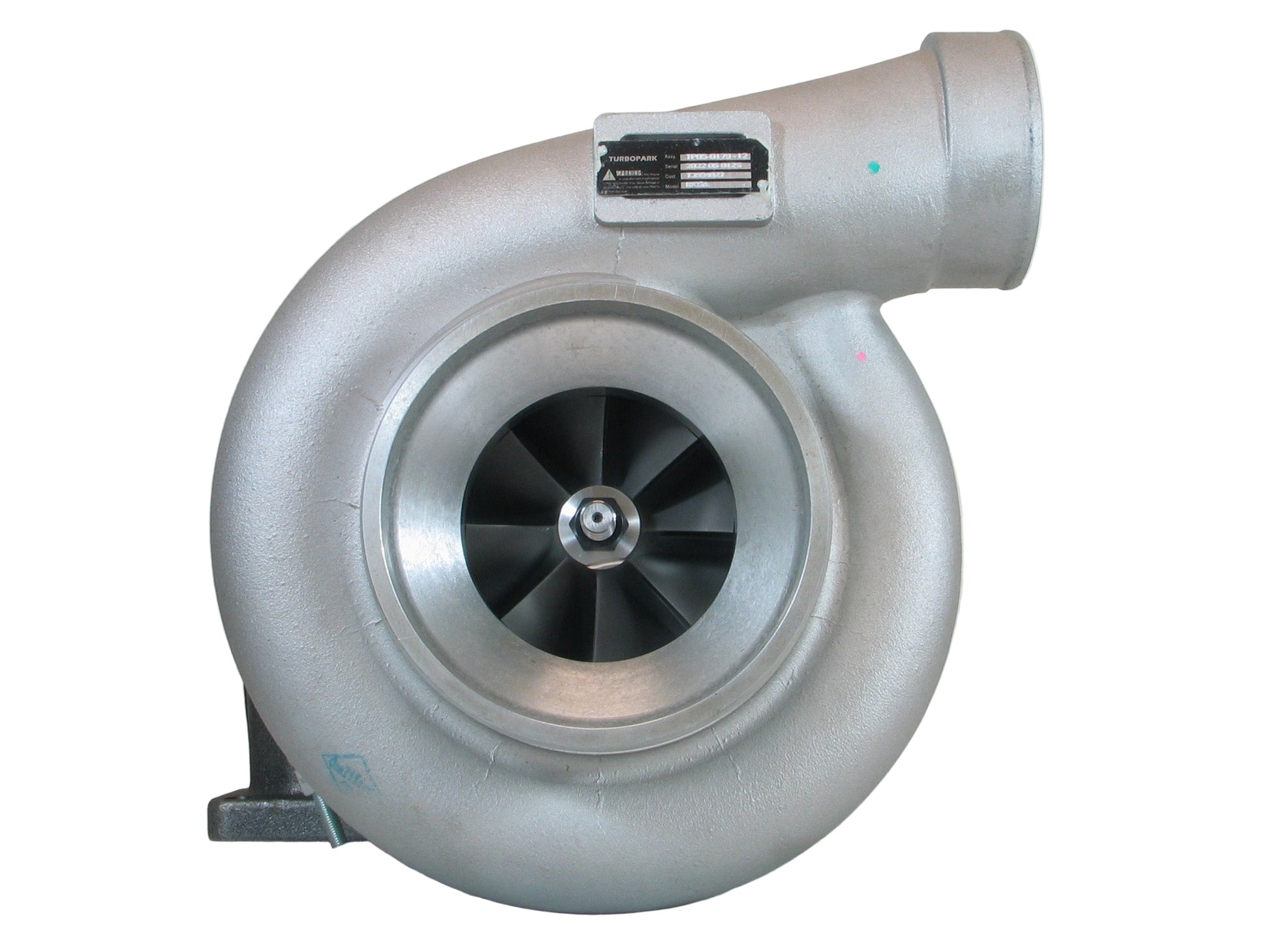

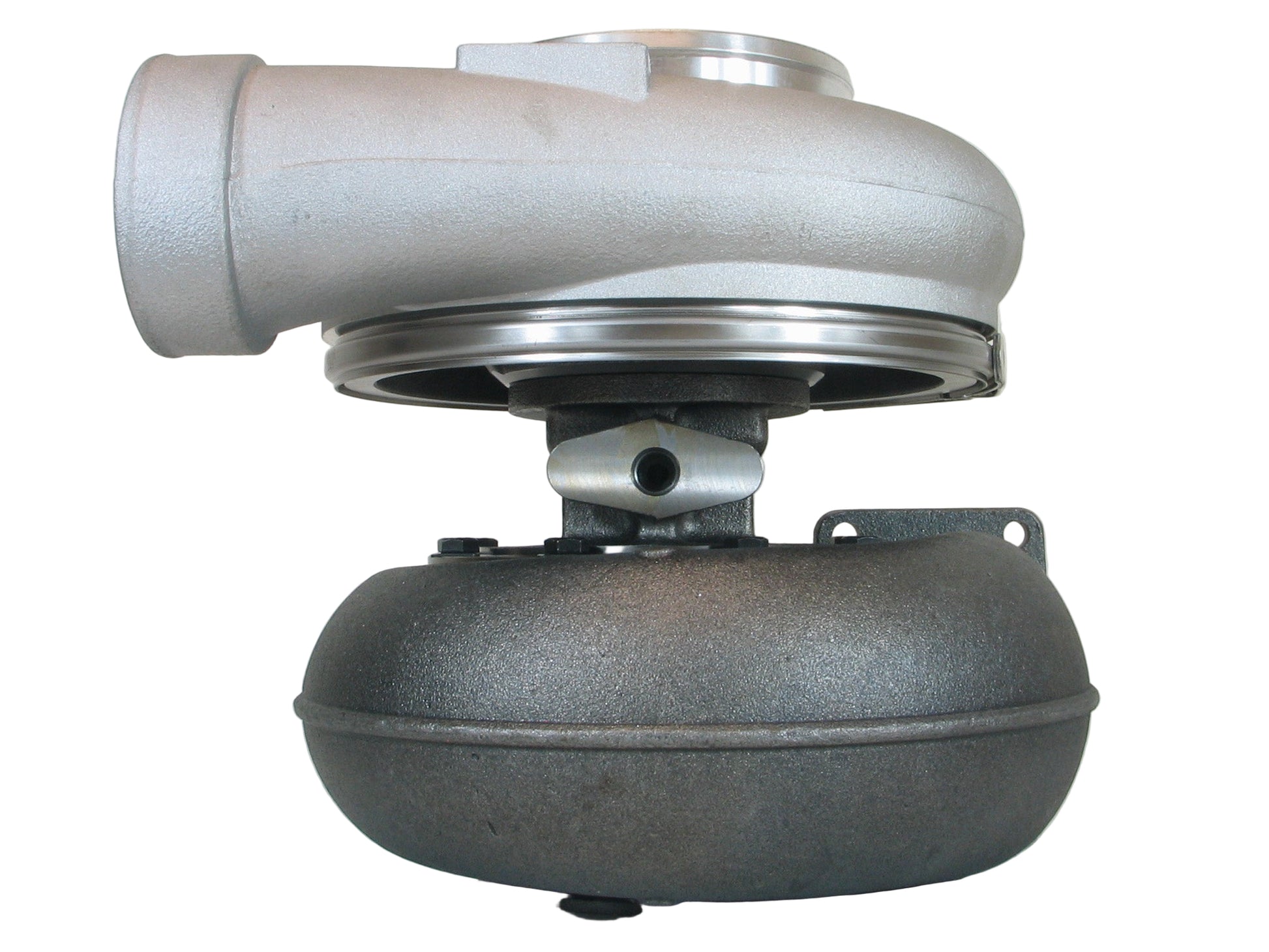

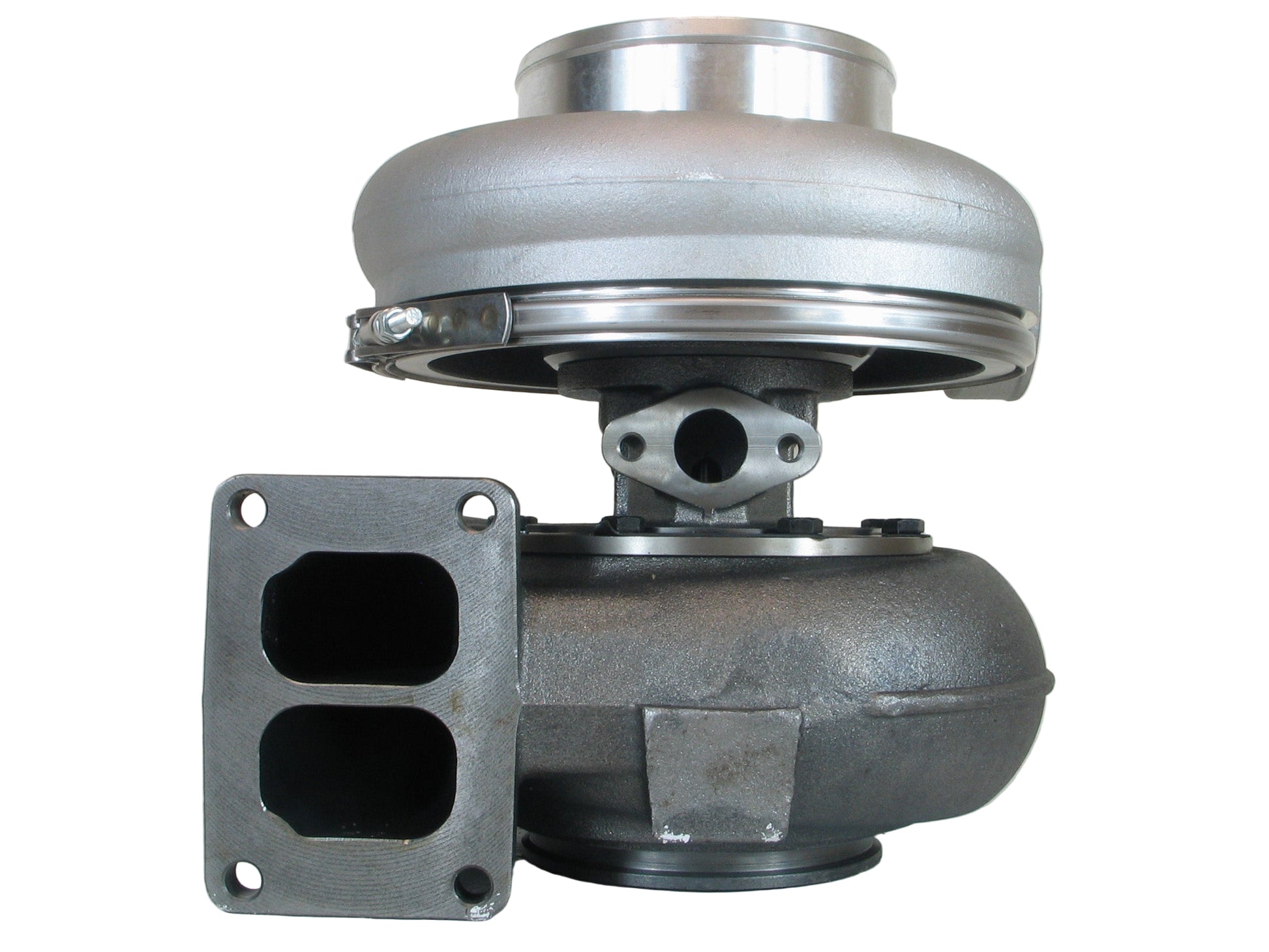

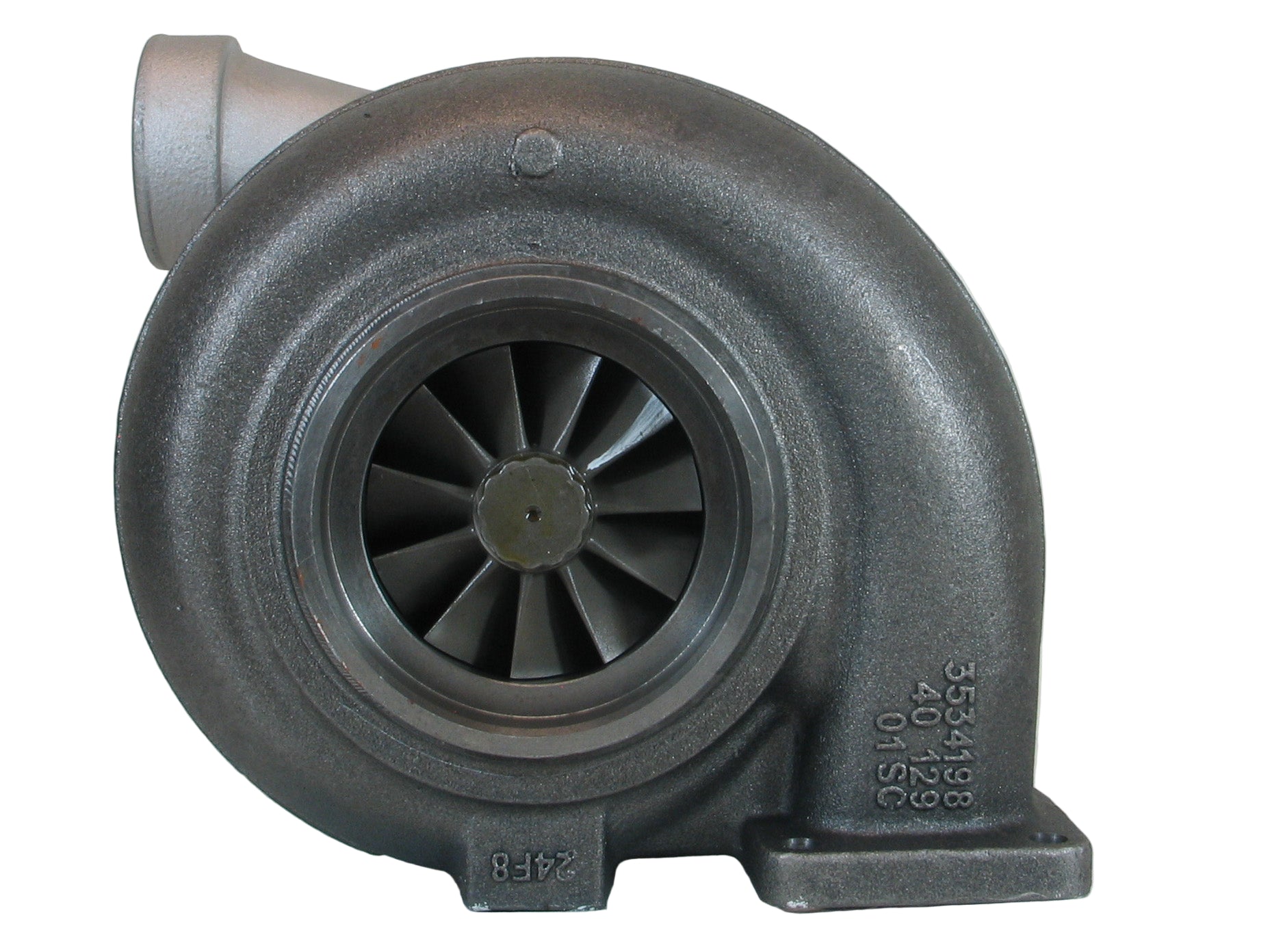

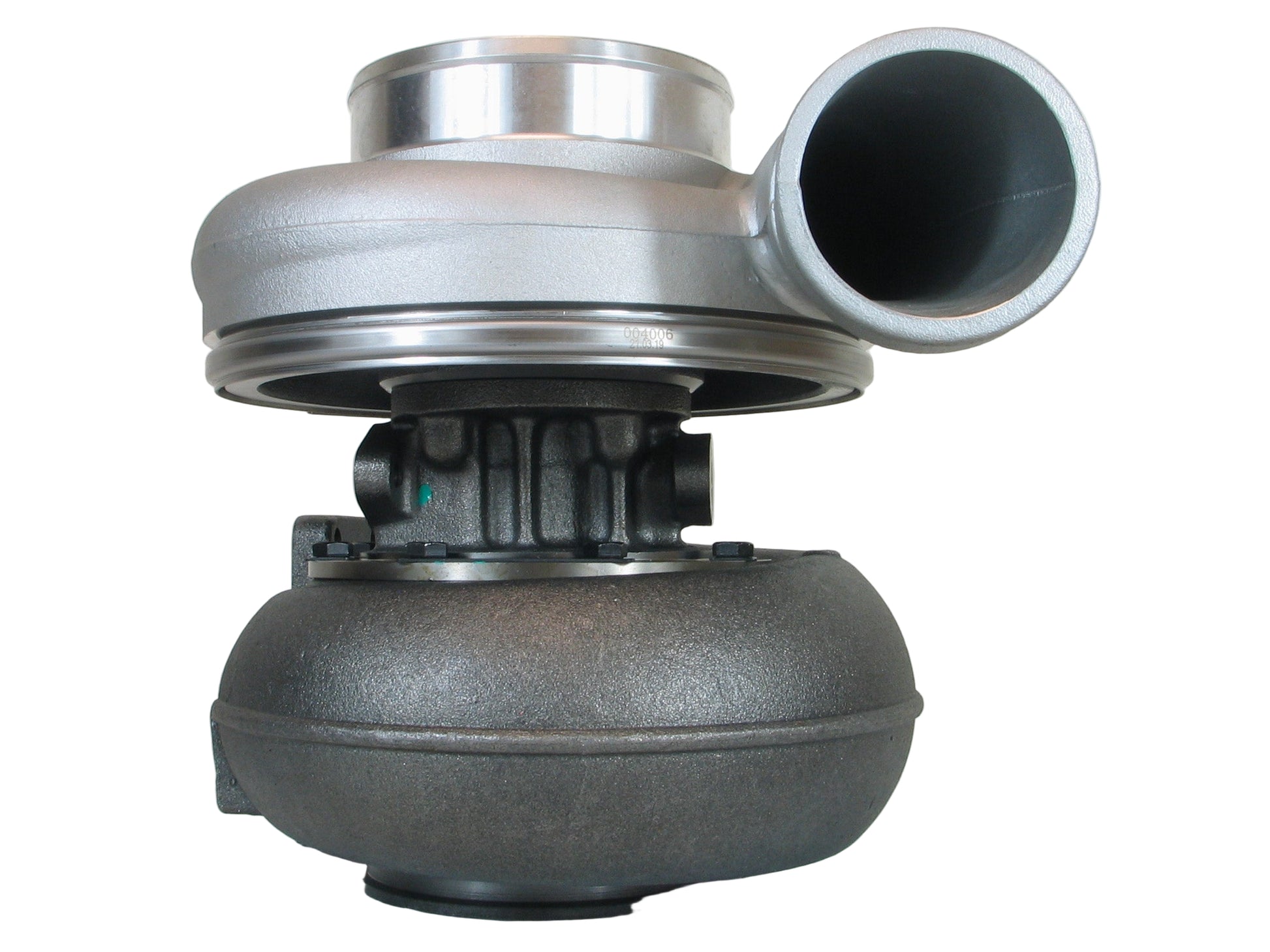

NEW HC5A Turbo Truck Cummins KTA19 KTA38 Diesel Engine 3801722 3594027 3523850SKU: TP05-0179-12
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3523850
Interchangeable Number: 3035305, 3035306, 3035307, 317107, 3594027 3594043 3801697NX, 3801697RX, 4033456, 466166-0001, 466166-5001, 466166-5001S, 466166-0002, 466166-5002, 466166-5002S, 466166-0003, 466166-5003, 466166-5003S, 466166-0004, 466166-5004, 466166-5004S
OEM Number: 3035308, 3523851, 3525218, 3525219, 3594028, 3594029, 3594030, 3801689, 3801697, 3801722
Turbo Model: HC5A, HC5A-2741U/B40D3
Engine: KT-1150-C/L/P/GS/GC, KTA19, KTA19-525, KTA38
Engine Manufacturer: Cummins
Angle α (Compressor Housing): 247°
Angle β (Turbine Housing): 360°
Back Plate: 3524862 (352486200)
Bearing Housing: 3523429 (352342900)(3022514, 5149403)(Oil Cooling)(1900011448)
CHRA: 3545702 (4027084, 402708400)(1000020106)
Compressor Cover: 3524861
Compressor Wheel: 3521918 (Ind. 121.8 mm, Exd. 85.2 mm, Trim 47, 8+8 Blades)(1200030005)
Gasket (Oil Outlet): 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (Turbine Inlet): 409038-0000 (132040, 52231083002, 1900000004)
Heat Shield: 3519783 (351978300)
Repair Kit: 4027970 (4027974, 3575236, 3545647, 4027966)(1152105750, 1152105756, 5000020020)
Turbine Housing: 3521174
Turbine Wheel: 3521033 (3521033, 75124631)(Ind. 129 mm, Exd. 95.4 mm, Trim 19, 11 Blades)(1152105435, 1100016472)
1986-05 Truck, Various with Cummins KTA19, KTA38 Engine
TurboTurbos Part Number: TP05-0179-12
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
