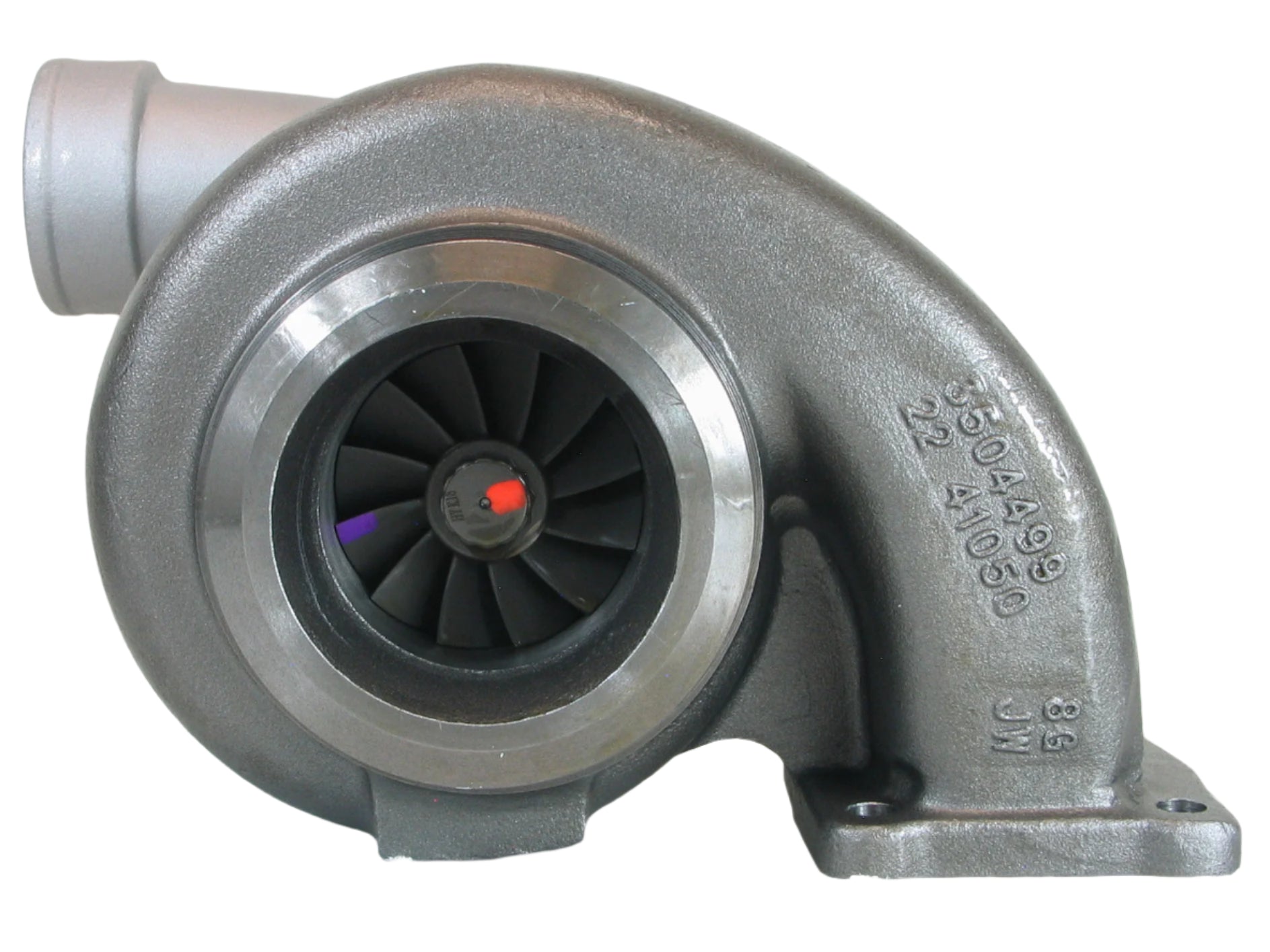

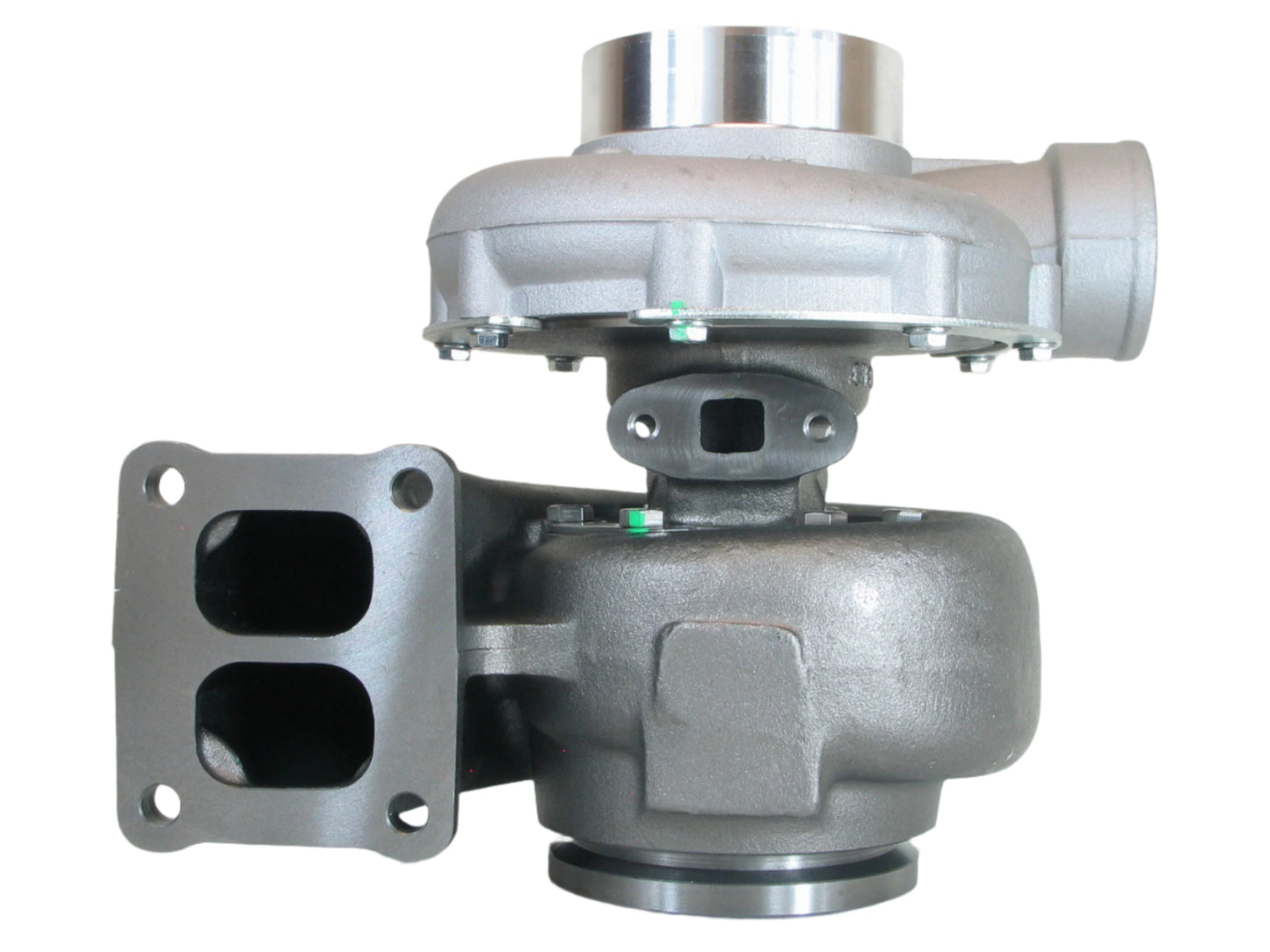

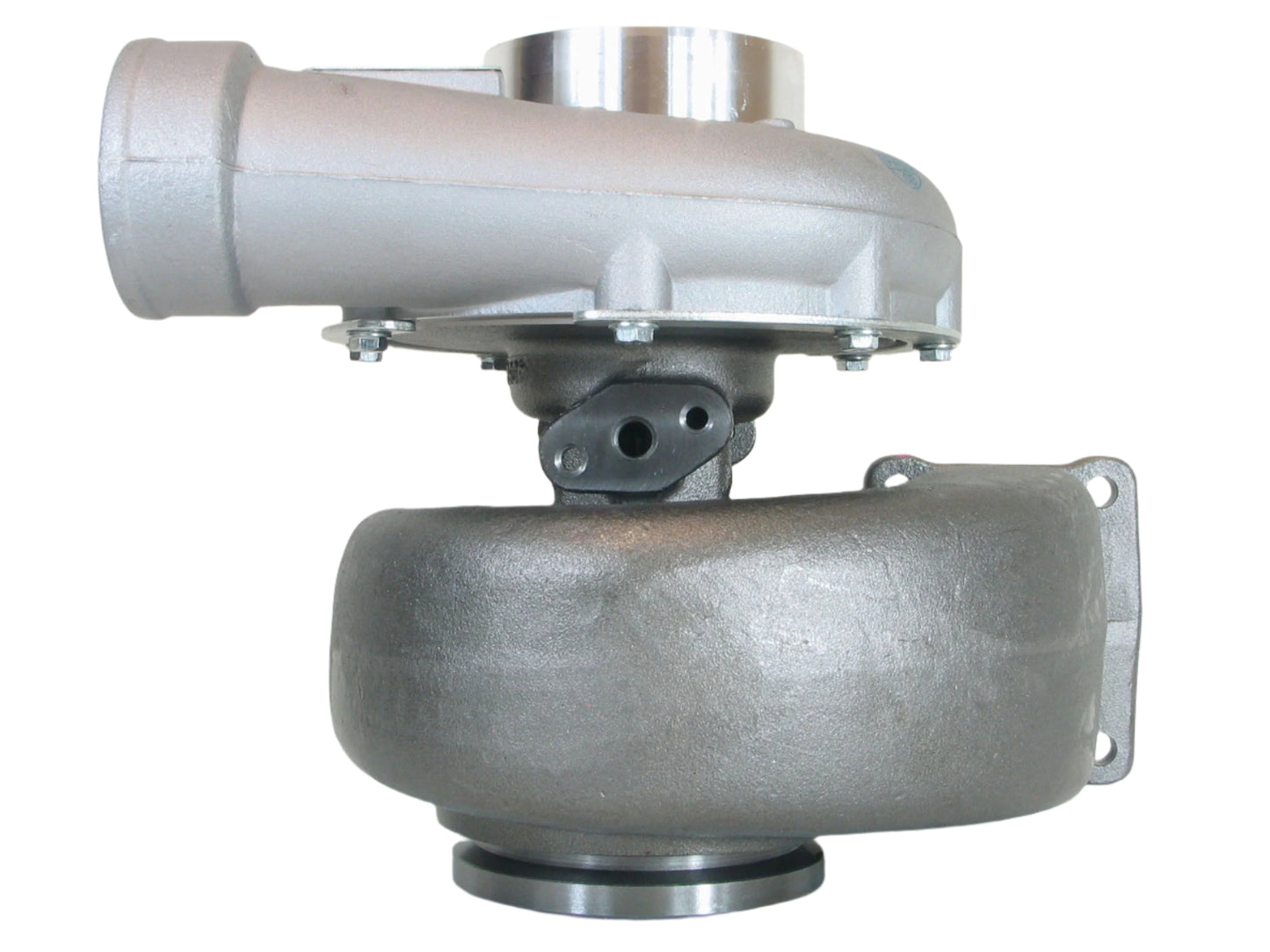

NEW H2E Turbo Truck Cummins L10 10.0L Diesel Engine 3803578 3531861

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 3531861
Interchangeable Number: 3531862, 3531862H, 3531862, 3531862H, 3531861, 1700320190, 170-032-0190, 1700320621, 170-032-0621, 3531861, 3531862
3531862H
OEM Number: 3803578, 380357800, 3803578, 380357800, 3803578NX, 3803578RX, 3803660
Turbo Model: H2E-9551BS/TA19Q3, H2E

Year: 1992-02
Engine: L10
Engine Manufacturer: Cummins
Displacement: 10.0L
Fuel: Diesel

Back Plate: 3528096
Bearing Housing: 3533195 (Oil Cooled)
CHRA: 3575061 (3535239)
Compressor Cover: 3528997
Compressor Wheel: 3528123 (Ind. 86 mm, Exd. 76.98 mm, 12 Blades)
Gasket (Oil Inlet): 210023 (409036-0000, 210023-0000, 55739, 147837)
Gasket (Oil Outlet): 311496 (409037-0000, 210021-0000, 413671-0000, 3519807, 210021)
Gasket (Turbine Inlet): 409123-0002 (310694)(Inox Steel)
Gasket Kit: 3800196
Heat Shield: 3533038 (3529846)
Repair Kit: 3575015 (3545997)
Turbine Housing: 3531770
Turbine Wheel: 3522232 (Ind. 85.95 mm, Exd. 72 mm, 11 Blades)

Application:
1992-02 Truck with Cummins L10 Engine

TurboTurbos Part Number: TP05-0210-36

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
