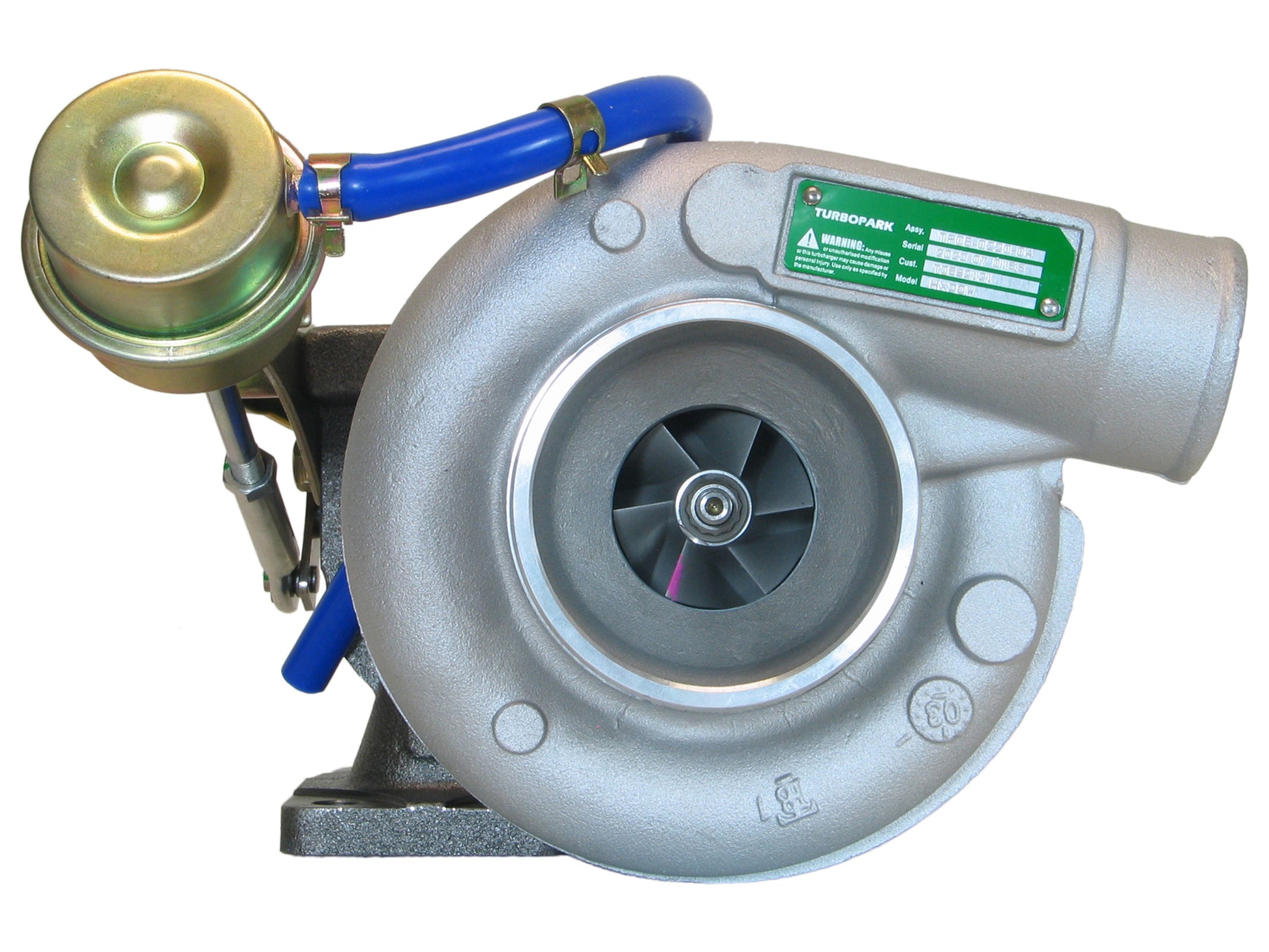

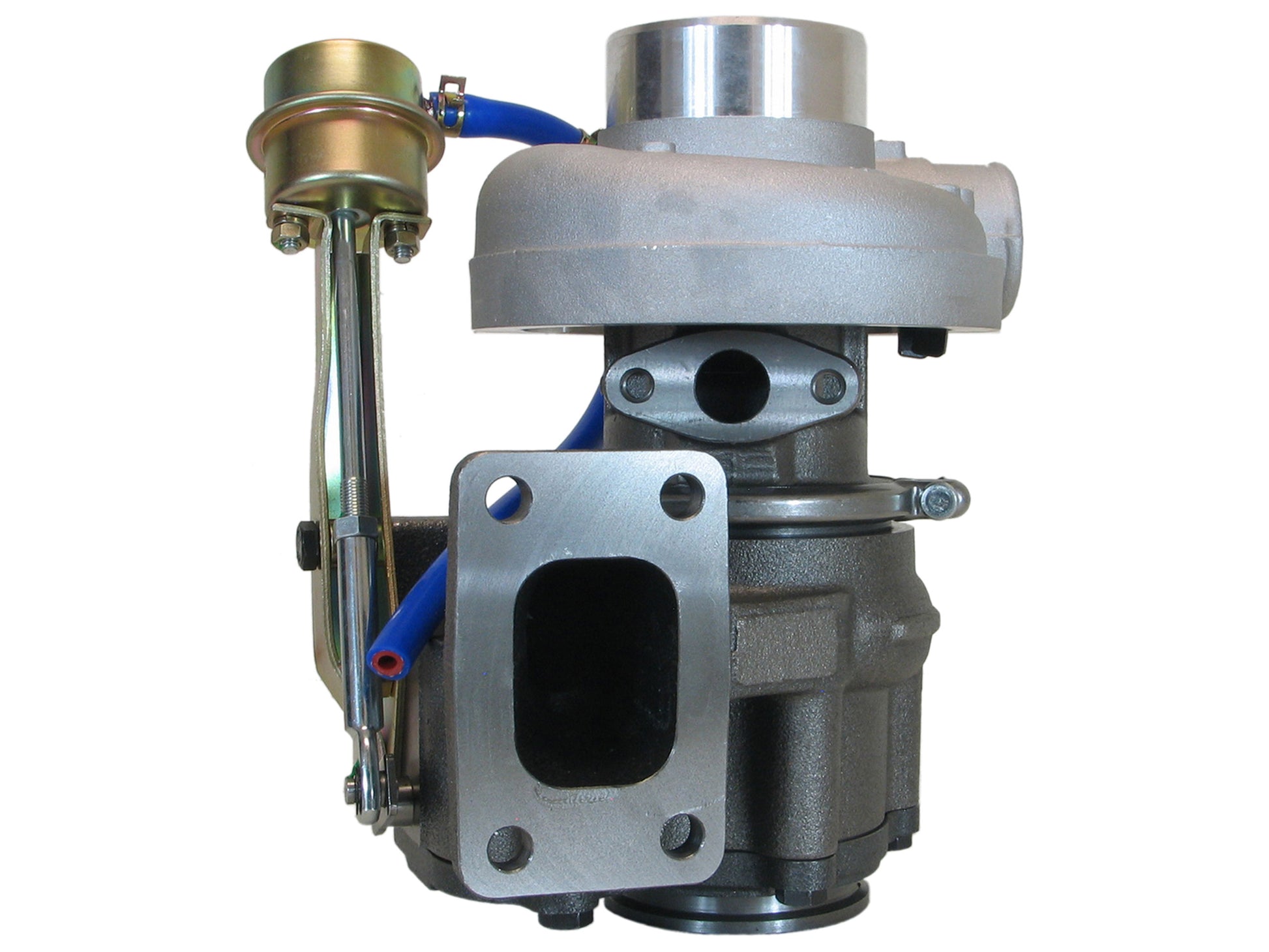

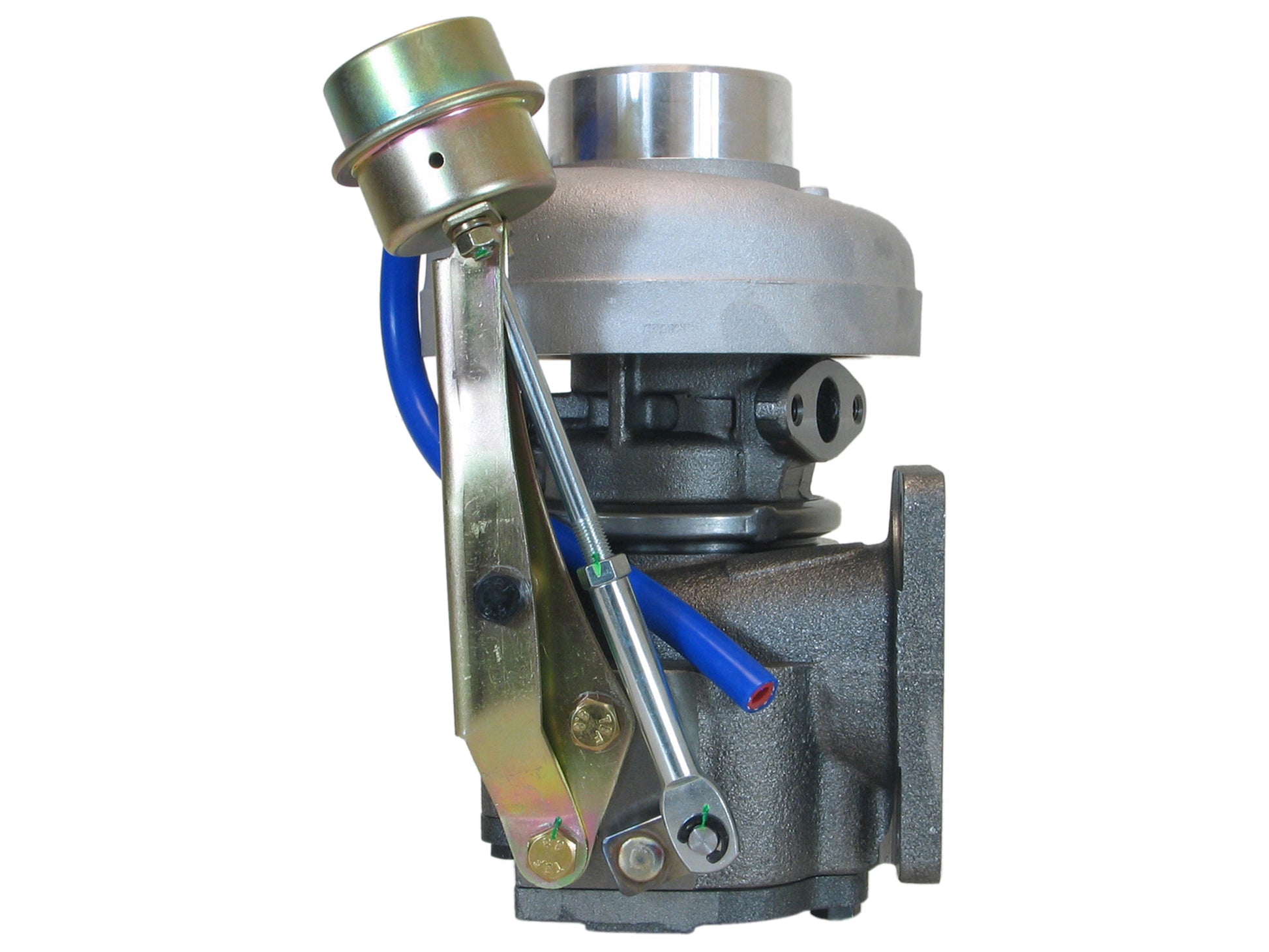

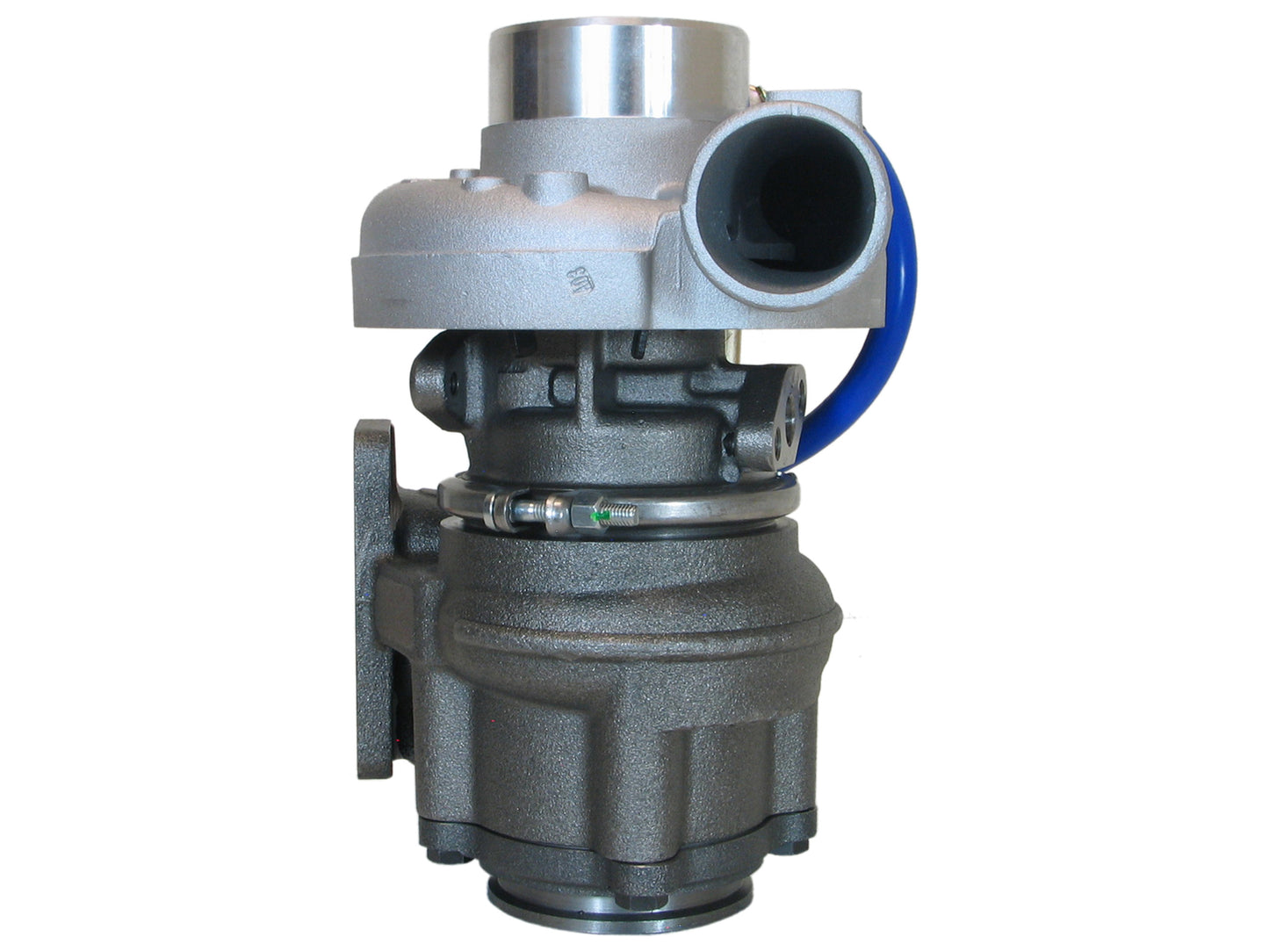

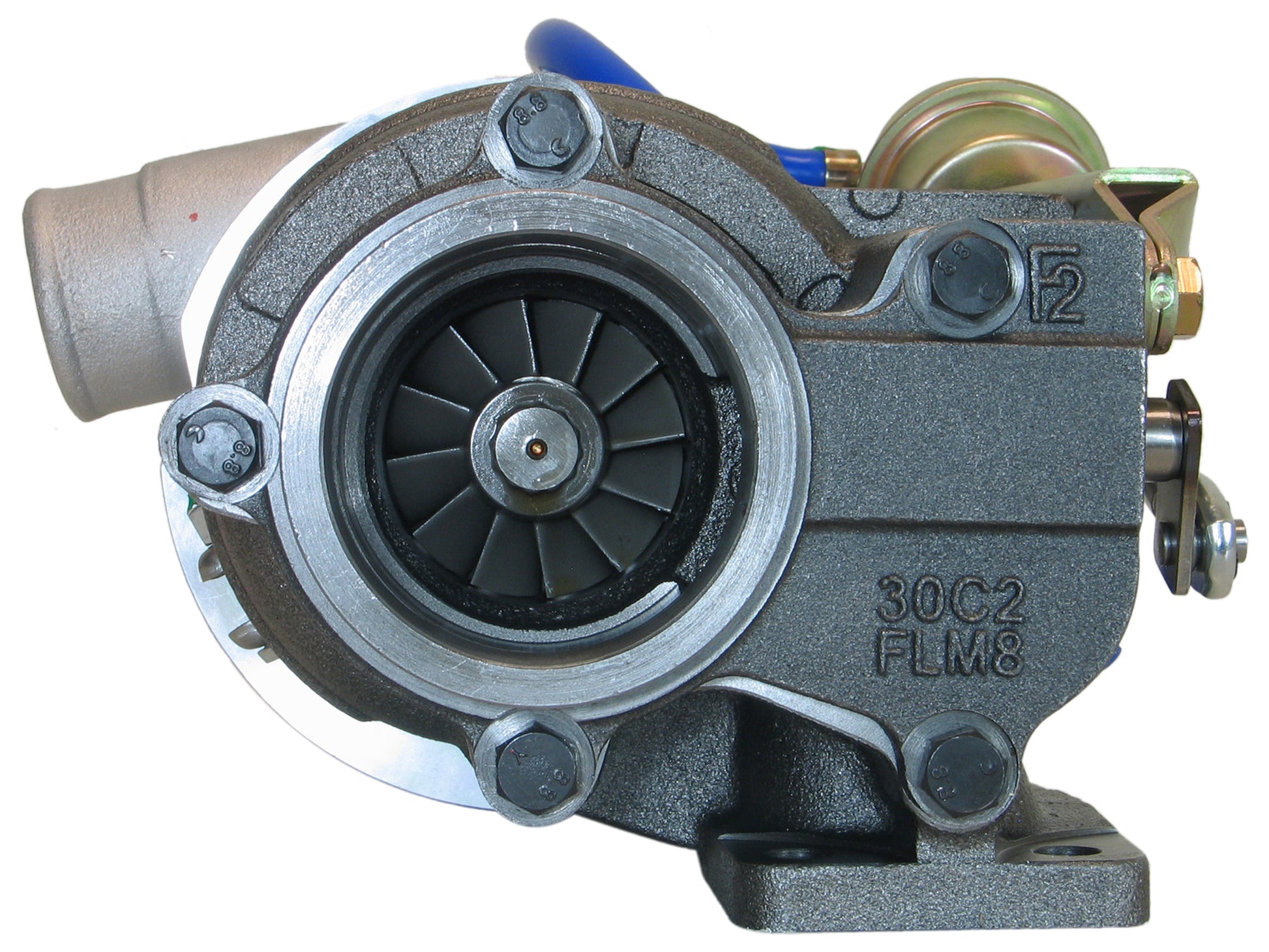

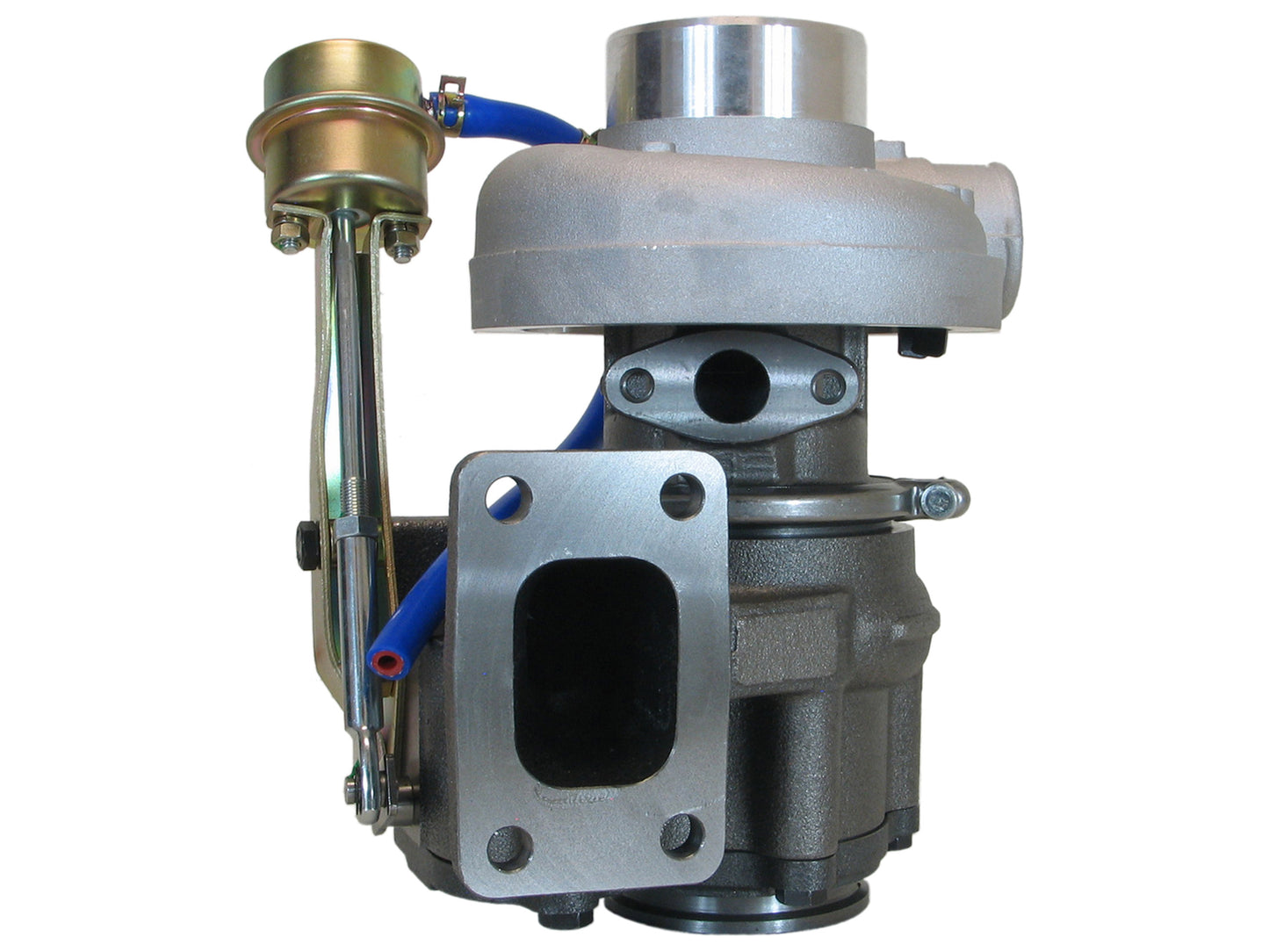

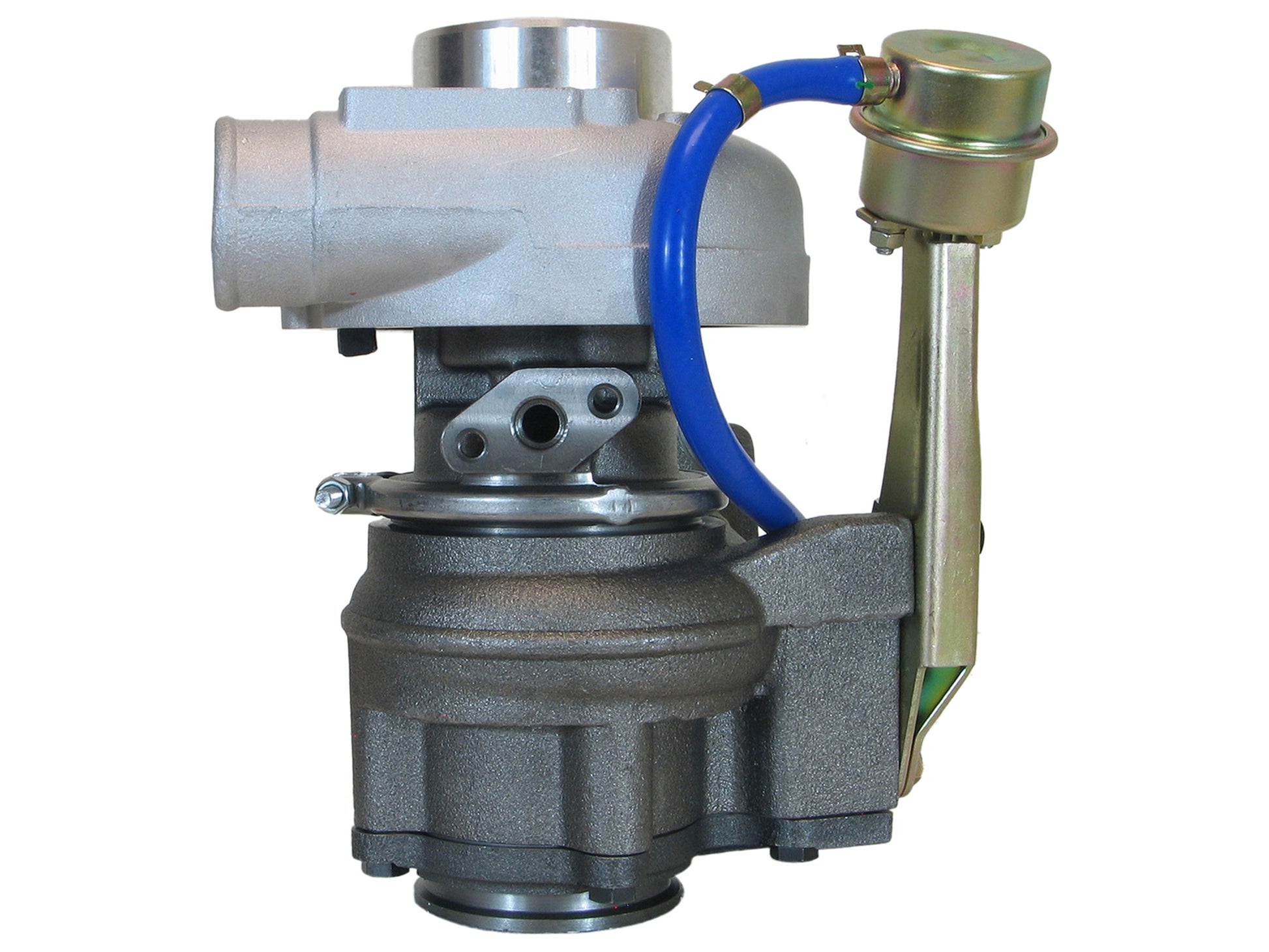

NEW HX30W Turbo Case Excavator 4391TA Power Unit Industrial Cummins 4BTA 3592121
NEW HX30W Turbo Case Excavator 4391TA Power Unit Industrial Cummins 4BTA 3592121
SKU:TP05-0220-26
Regular price
$795.00
Regular price
$0.00
Sale price
$795.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

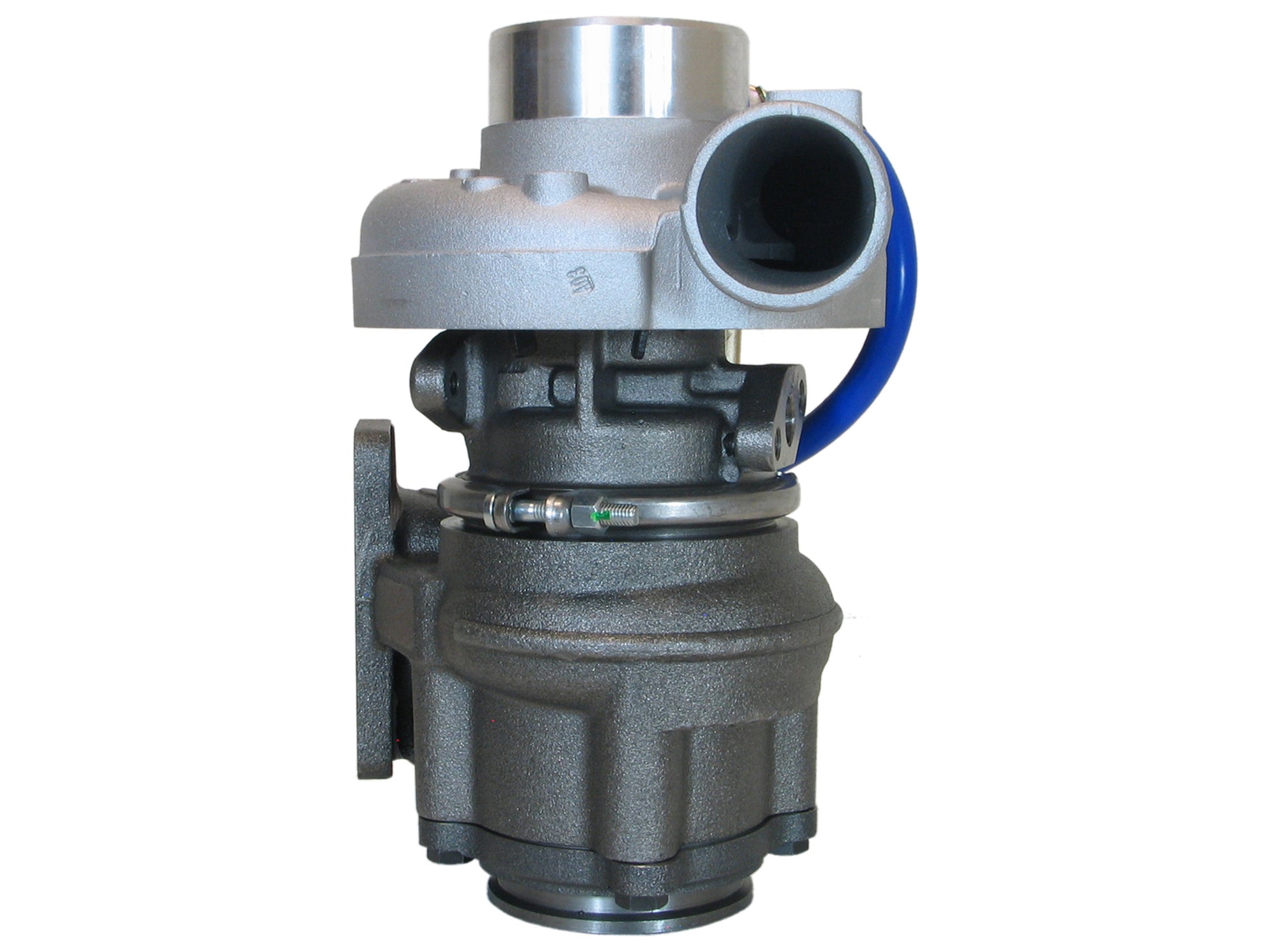

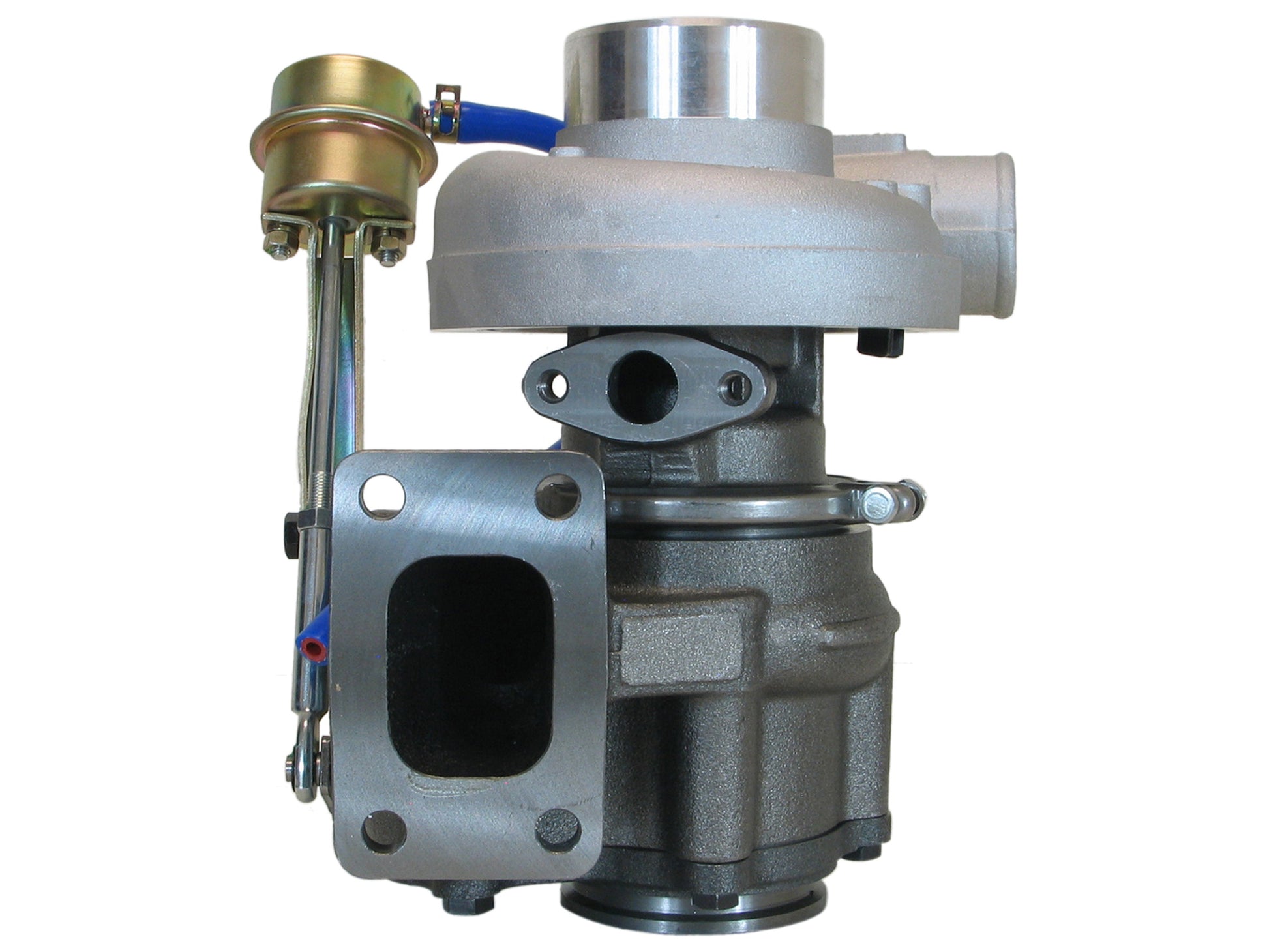

NEW DIRECT REPLACEMENT TURBOCHARGER
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

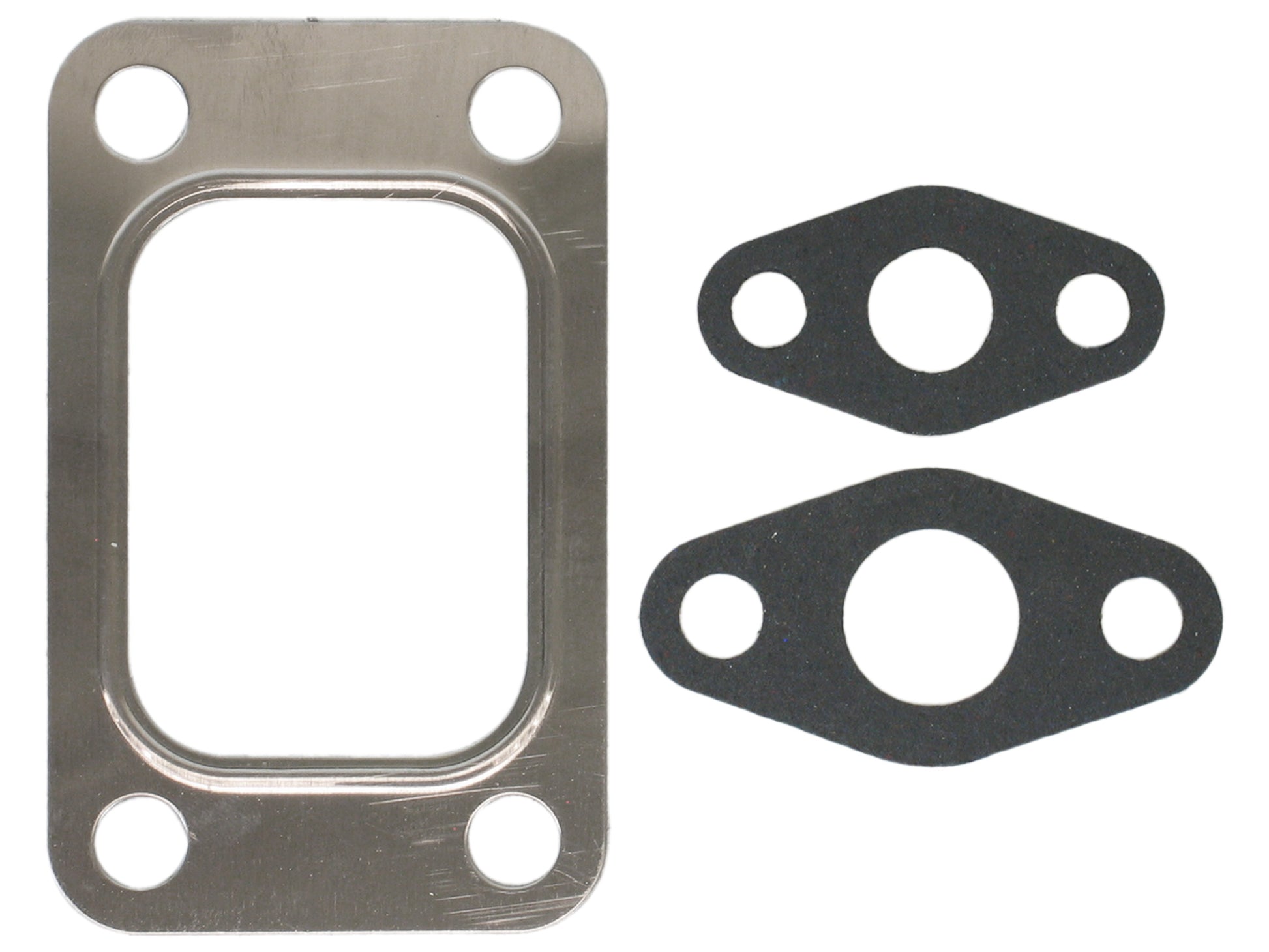

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 3592121
Interchangeable Number: 3537751, 3592122H, 380290600
OEM Number: 3537752, 3537753, 3590128, 3592122, 3592123, 3592124, 3802906, J802906, JC537751, JR802906
Turbo Model: HX30W, HX30W-Q6819A/B06BX33
Year: 1995-
Engine: 4391TA, 4BT, 4BTA, B4.5
Engine Manufacturer: Cummins
Displacement: 3.9L
Fuel: Diesel
Power: 130 HP
Angle α (Compressor Housing): 201/285/340°
Angle β (Turbine Housing): 20/165/360°
Actuator Kit (Pneumatic): 4030199H
Actuator Pressure: 1.620 bar
Actuator: 3594012 (3594012H)
Back Plate: 3530923 (1154351300)
Bearing Housing: 3539227/4030799
Bracket Kit: 4029951H
CHRA: 3593410 (3593410H, 4032115, 4032374, 3580234)
Compressor Housing: 3539806 (3539806H)
Compressor Wheel: 3599693 (3599699H)(Ind. 65 mm, Exd. 52 mm, Trim 5.01, 6+6 Blades)
Gasket (Oil Outlet): 210060 (311585, 148062, 2475013)(Paper)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (Turbine Outlet): 3535001H
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit (Major): 3575205 (3575205H)(1153030750)
Turbine Housing: 3535656H
Turbine Housing: 4030449
Turbine Wheel: 3539805 (3539805H)(Ind. 40.1 mm, Exd. 67.97 mm, 12 Blades)(1153035436)
Turbocharger Kit (Wastegate): 3592122H
Application:
1995-01 Case 9010B, 9020B Hydraulic Excavator with 4391TA Engine
1998-08 Truck with Cummins 4BTA Engine
1999-00 Case IH Irrigation Power Unit with Cummins 4391TA, 4BTA Engine
2000-09 Case CX130, CX160 Hydraulic Excavator (North America) with Cummins 4391TA, 4BTA Engine
2005- Broderson Rough Terrain Crane with Cummins B4.5 Engine
2013-15 Case RP110 Power Unit with 4391TA Engine
Hyundai Truck
Industrial with Cummins 4BT, 4BTA Engine
Powergen with Cummins 4BTA Engine
TurboTurbos Part Number: TP05-0220-26
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 3592121
Interchangeable Number: 3537751, 3592122H, 380290600
OEM Number: 3537752, 3537753, 3590128, 3592122, 3592123, 3592124, 3802906, J802906, JC537751, JR802906
Turbo Model: HX30W, HX30W-Q6819A/B06BX33
Year: 1995-
Engine: 4391TA, 4BT, 4BTA, B4.5
Engine Manufacturer: Cummins
Displacement: 3.9L
Fuel: Diesel
Power: 130 HP
Angle α (Compressor Housing): 201/285/340°
Angle β (Turbine Housing): 20/165/360°
Actuator Kit (Pneumatic): 4030199H
Actuator Pressure: 1.620 bar
Actuator: 3594012 (3594012H)
Back Plate: 3530923 (1154351300)
Bearing Housing: 3539227/4030799
Bracket Kit: 4029951H
CHRA: 3593410 (3593410H, 4032115, 4032374, 3580234)
Compressor Housing: 3539806 (3539806H)
Compressor Wheel: 3599693 (3599699H)(Ind. 65 mm, Exd. 52 mm, Trim 5.01, 6+6 Blades)
Gasket (Oil Outlet): 210060 (311585, 148062, 2475013)(Paper)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (Turbine Outlet): 3535001H
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit (Major): 3575205 (3575205H)(1153030750)
Turbine Housing: 3535656H
Turbine Housing: 4030449
Turbine Wheel: 3539805 (3539805H)(Ind. 40.1 mm, Exd. 67.97 mm, 12 Blades)(1153035436)
Turbocharger Kit (Wastegate): 3592122H
Application:
1995-01 Case 9010B, 9020B Hydraulic Excavator with 4391TA Engine
1998-08 Truck with Cummins 4BTA Engine
1999-00 Case IH Irrigation Power Unit with Cummins 4391TA, 4BTA Engine
2000-09 Case CX130, CX160 Hydraulic Excavator (North America) with Cummins 4391TA, 4BTA Engine
2005- Broderson Rough Terrain Crane with Cummins B4.5 Engine
2013-15 Case RP110 Power Unit with 4391TA Engine
Hyundai Truck
Industrial with Cummins 4BT, 4BTA Engine
Powergen with Cummins 4BTA Engine
TurboTurbos Part Number: TP05-0220-26
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
