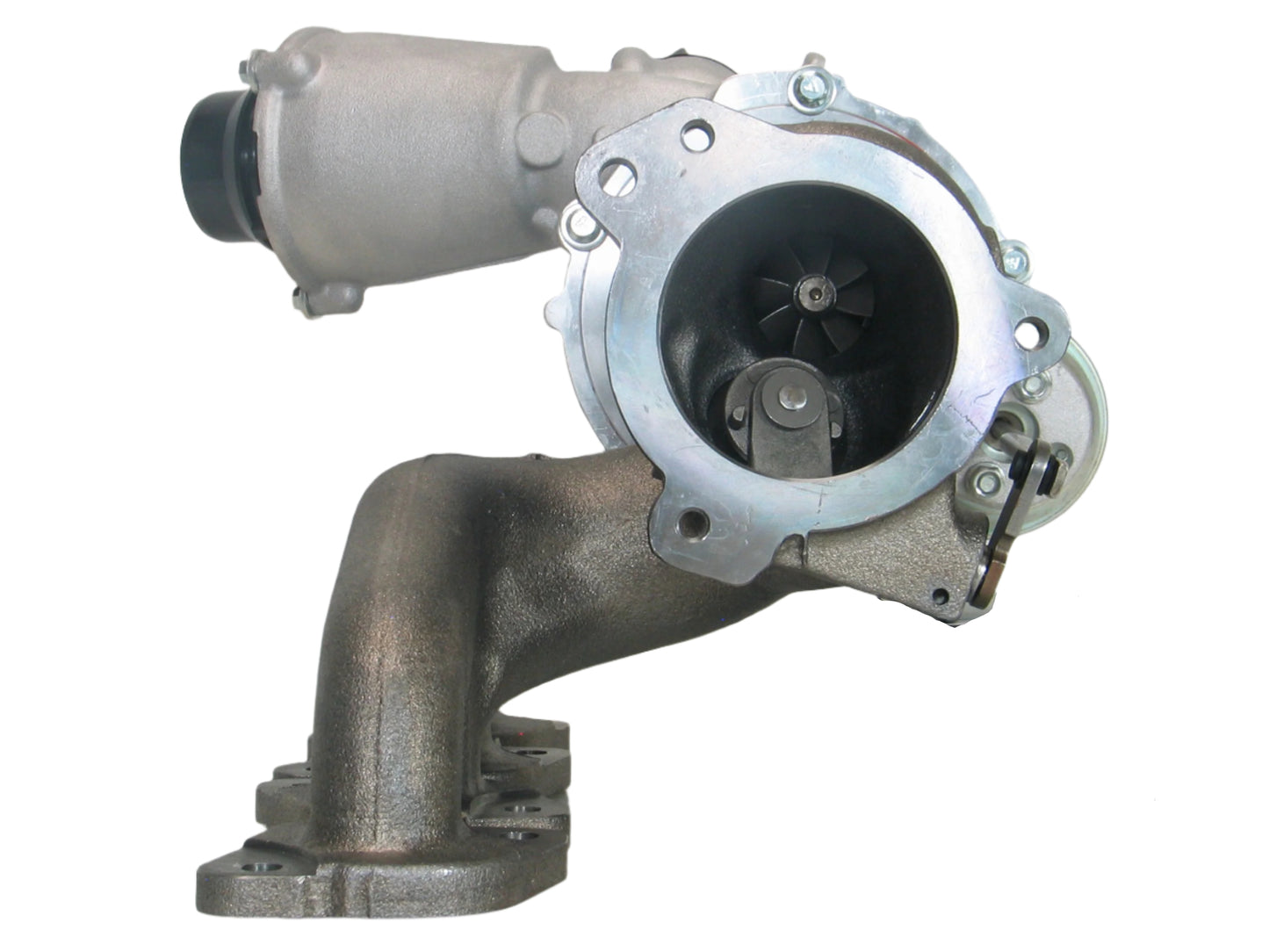

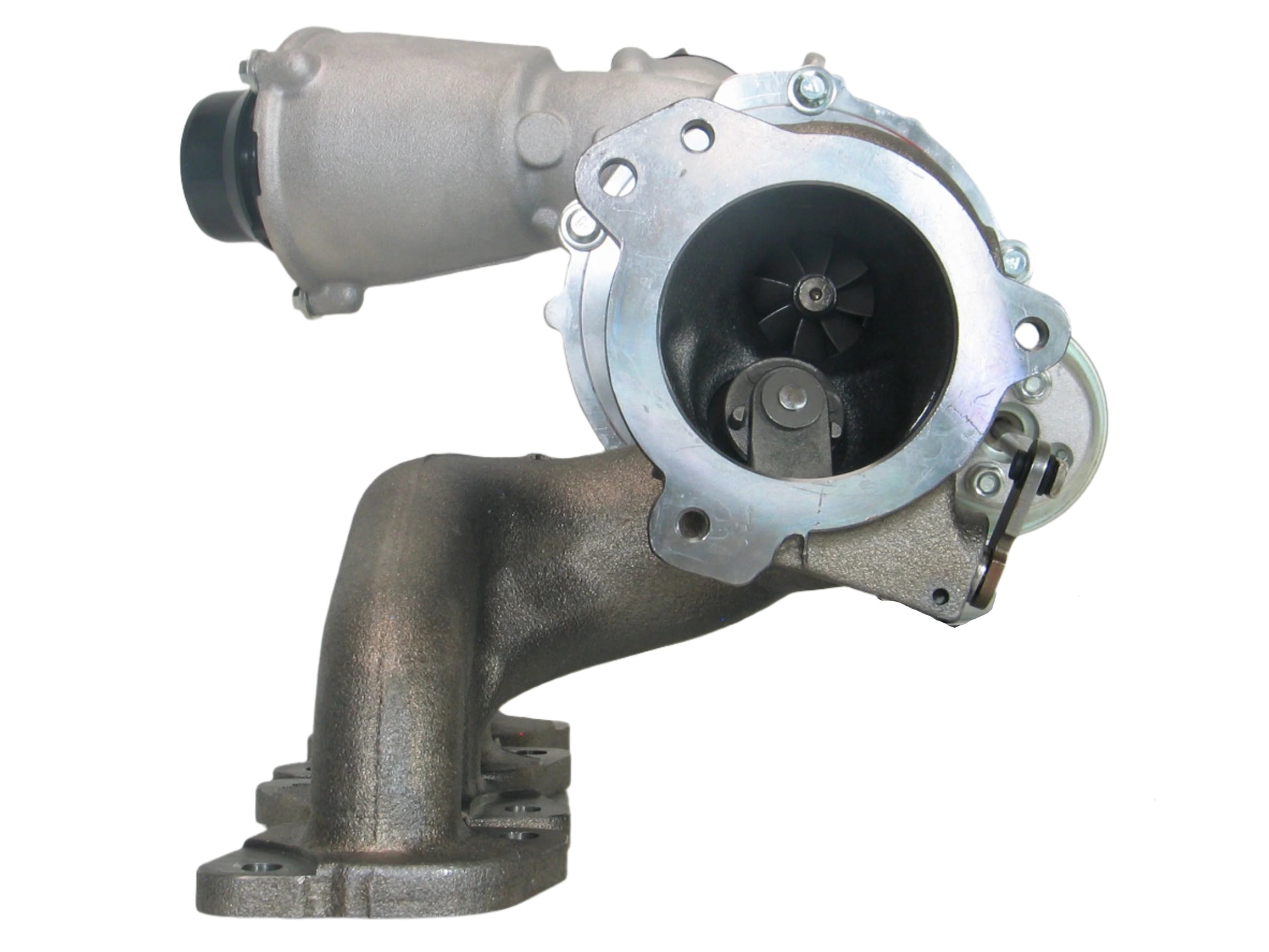

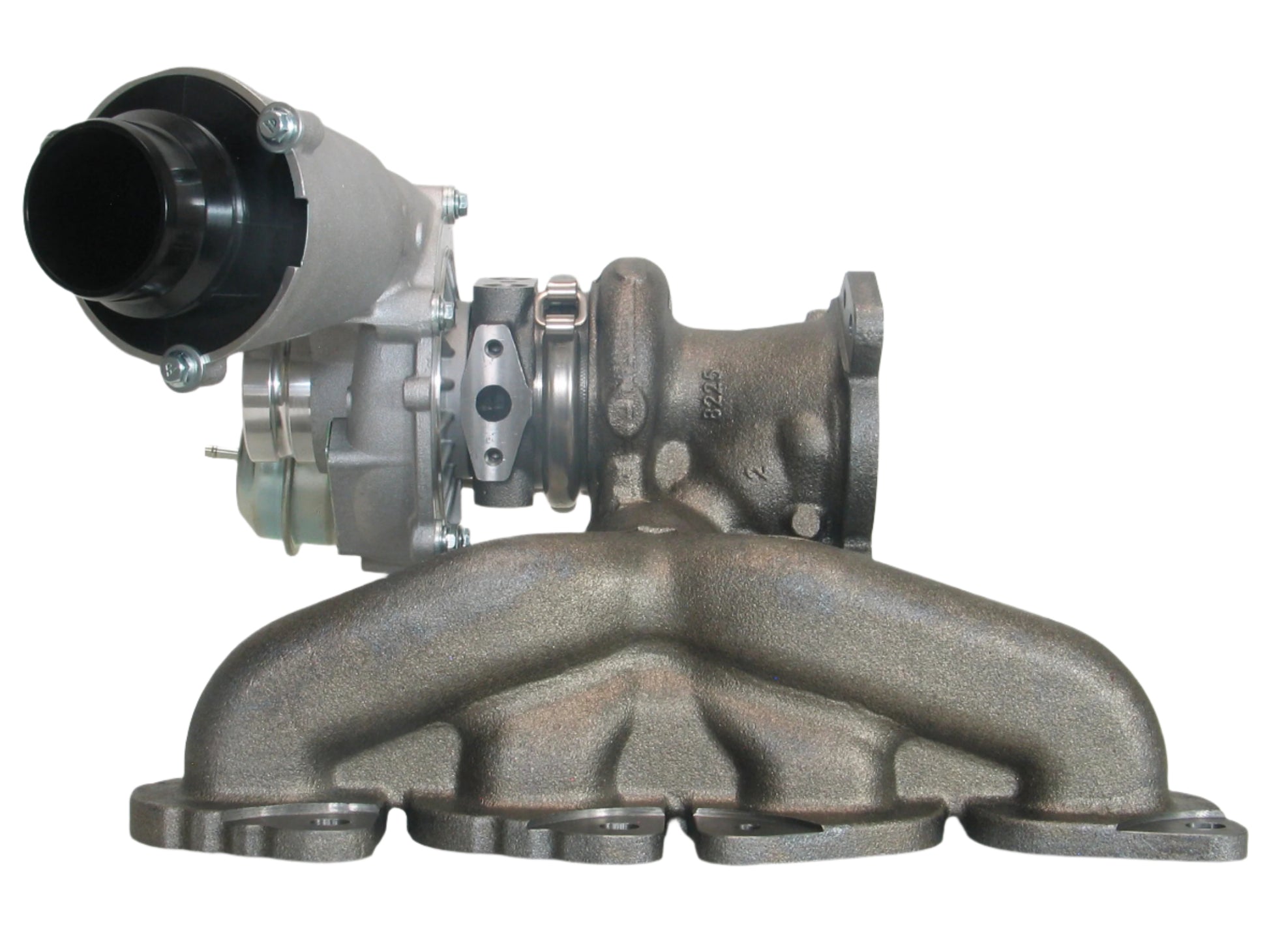

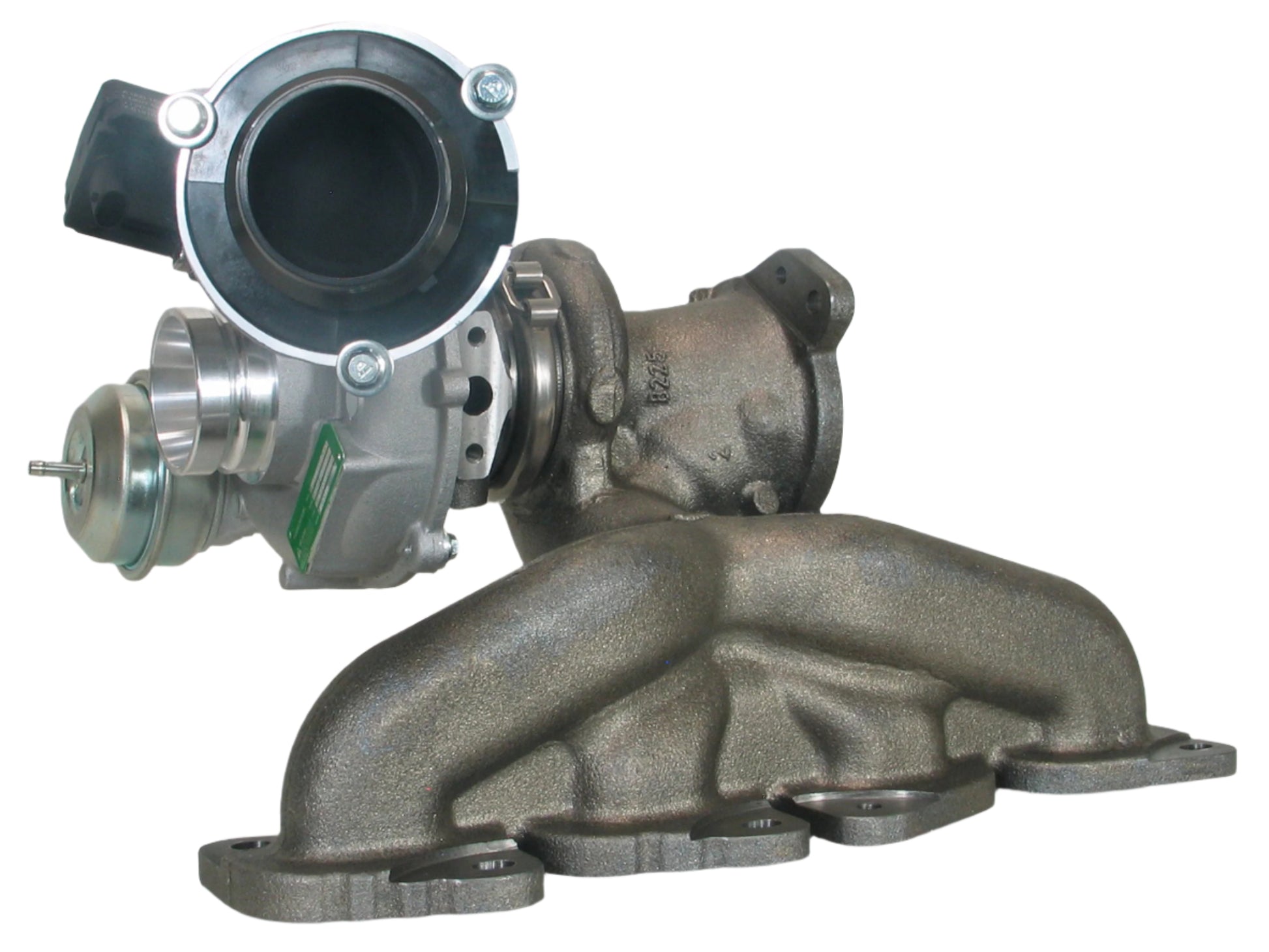

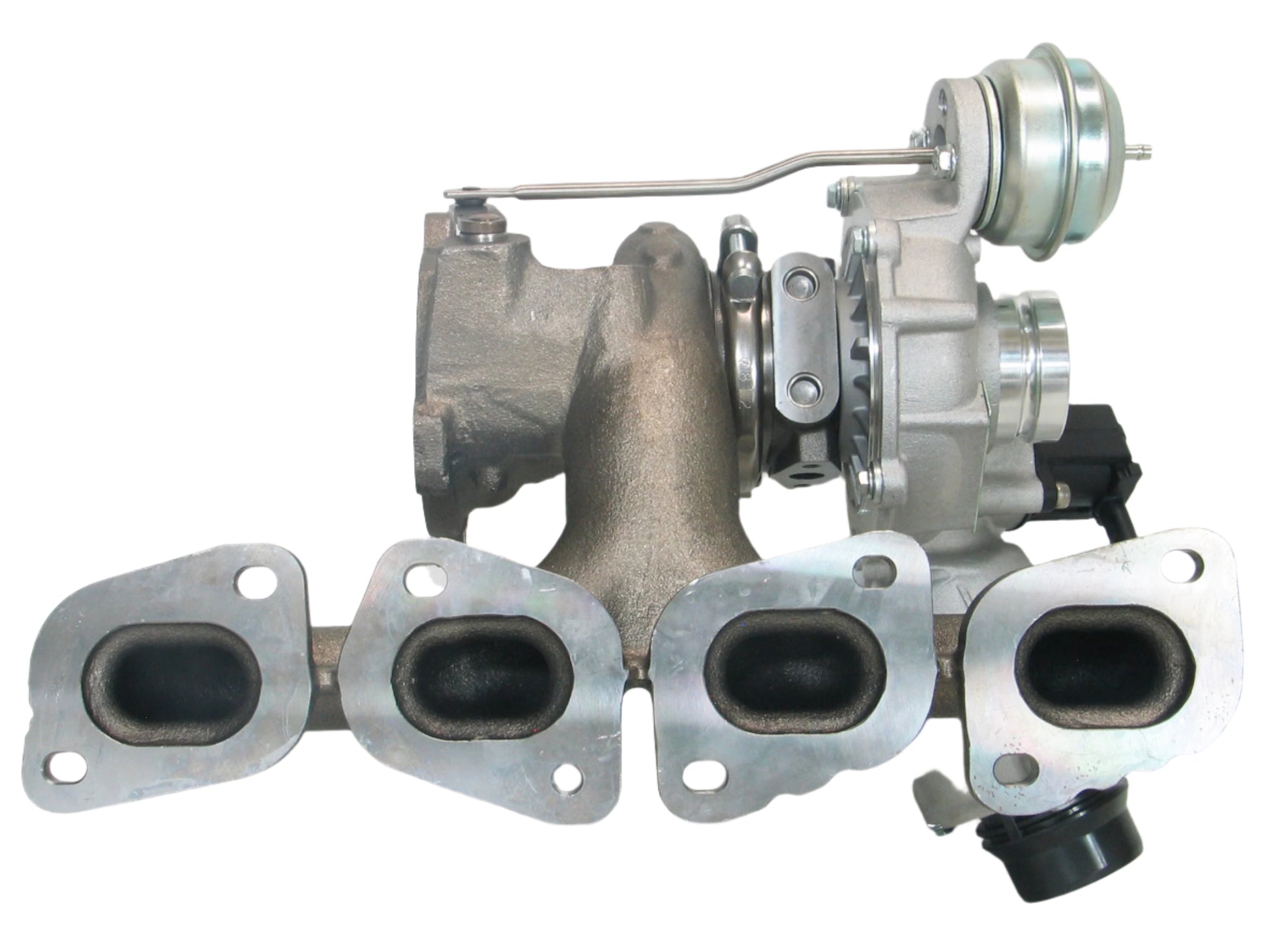

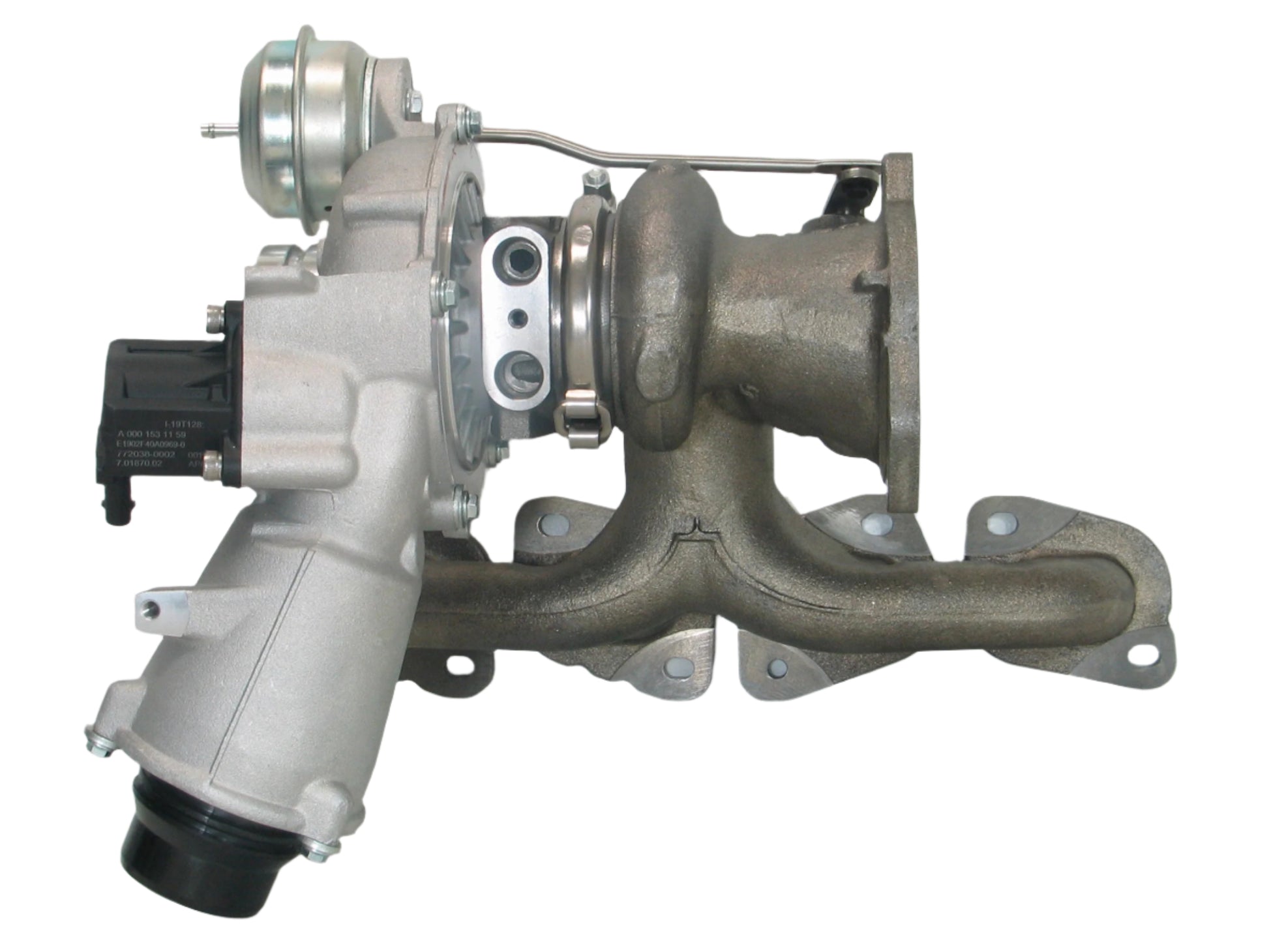

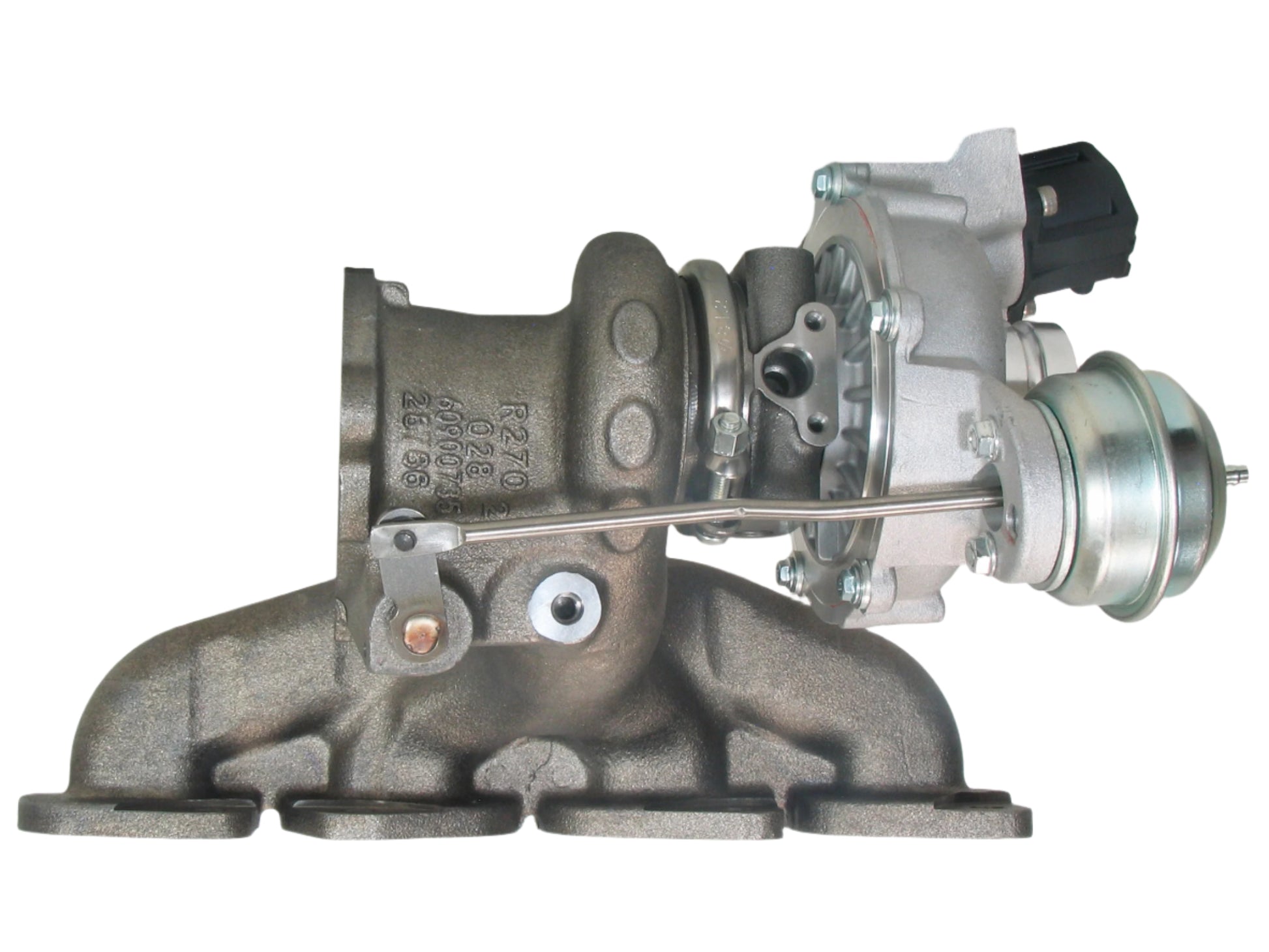

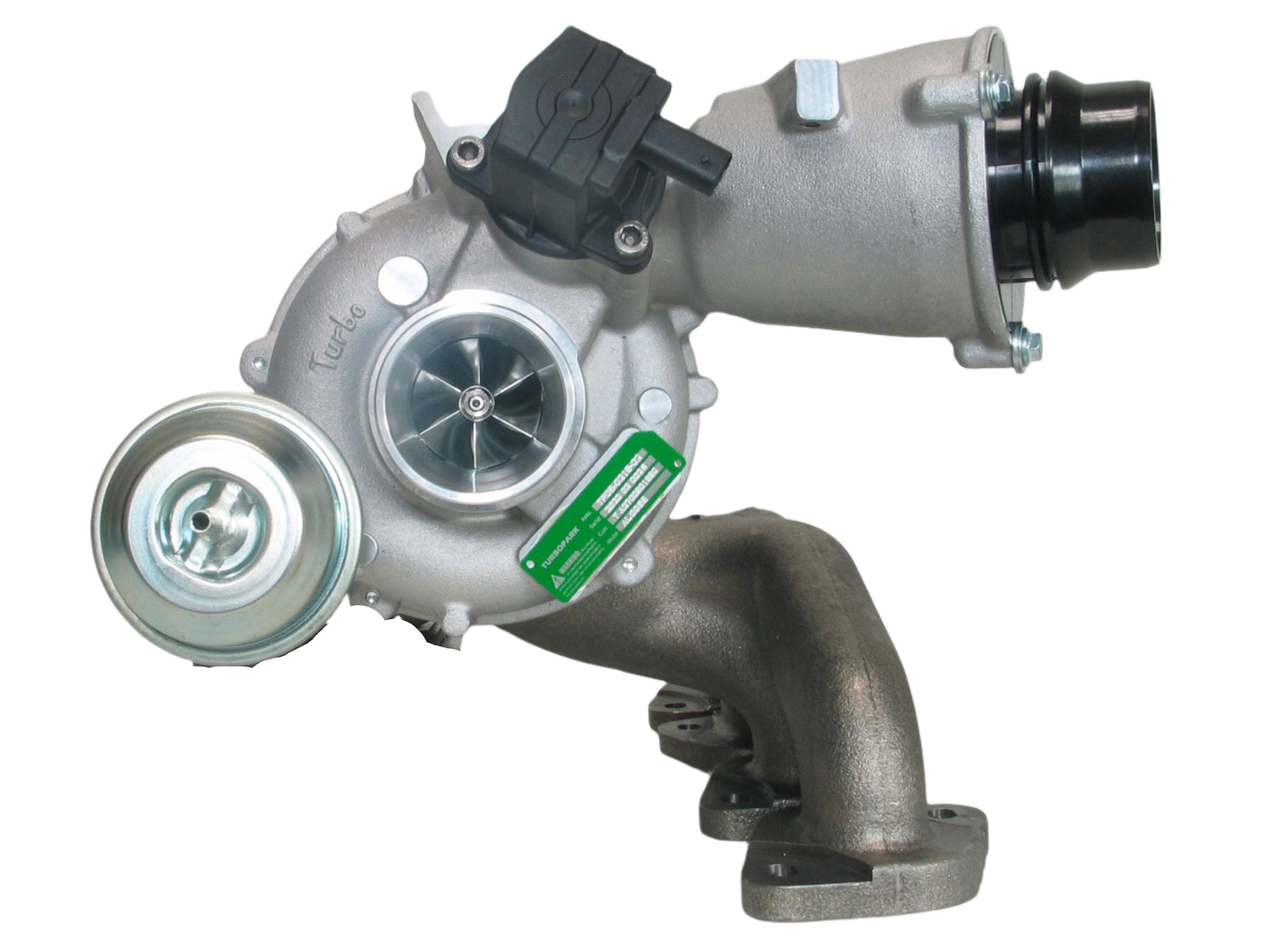

NEW RHF4 Turbo Mercedes-Benz A B CLA GLA OM640 M 270.920 2.0L AL0069 9V106SKU: TP06-0216-32
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: AL0069
Short Spec.: 9V106
Interchangeable Number: 14411-HG00M, 14411HG00M, F41CAY-SR057, F41CAY-SR057B, F41CAY-SR057BN, F41CAY-SR057G
OEM Number: 2700901480, 270090148060, 270090148080, 270090148088, 2700901880, 270090188060, 270090188080, 270090188088, 2700902380, 270090238060, 270090238080, 270090238088, 2700902980, 270090298060, 270090298080, 270090298088, A2700901480, A2700901880, A2700902380, A2700902980
Turbo Model: RHF4
Engine: 270920, M 270.920, M270910, OM640
Displacement: 2.0L, 1796 ccm, 4 Cylinder
Emission Standard: Euro 5, Euro 6
Fuel: Gasoline, Petrol
Power: 184/211/218 HP
Angle α (Compressor Housing): 228.7°
Angle β (Turbine Housing): 6°
Actuator: 772038-0002 (A0001531159)
Back Plate: (312090109)(1450040314, 1800016186)
Bearing Housing: (Water Cooled)(1450040478, 1900011492)
CHRA: CHRAAL0069 (1450040938, 1000040181T)
Compressor Wheel: (Ind. 38.83 mm, Exd. 50.95 mm, Trim 51, 6+6 Blades, Super Back)(1450140426, 1200016737T)
Heat Shield: (1450040314)
Repair Kit: (1450040753, 5000080025)
Turbine Housing A/R: 4

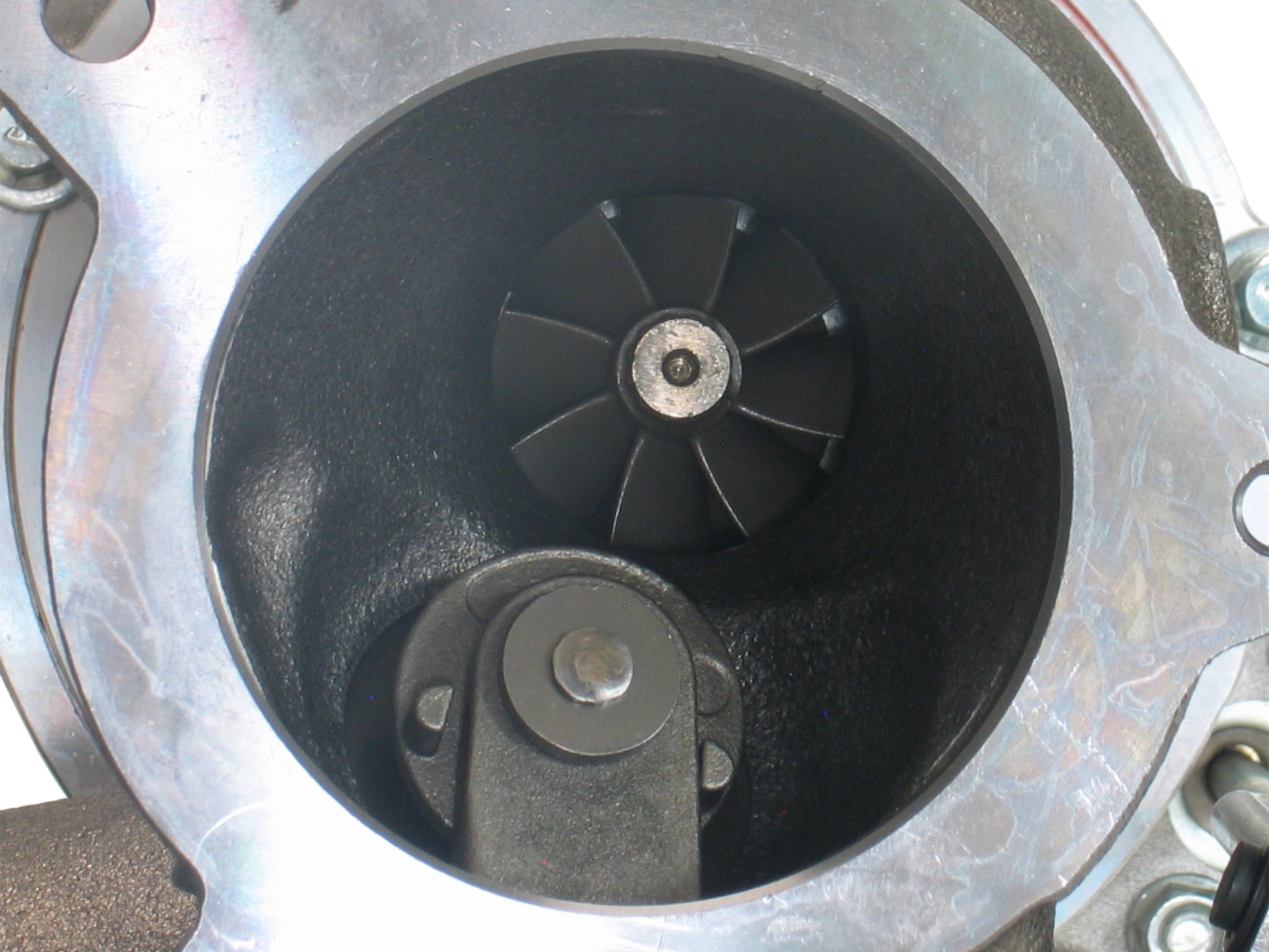

Turbine Wheel: (Ind. 33.82 mm, Exd. 40.82 mm, 8 Blades)(1450040437, 1100016526)
2005-09 Mercedes-Benz A-Class (W117) with OM640 Engine
2012- Mercedes-Benz B-Class (W117) with 270920 Engine
2012-18 Mercedes-Benz A-Class (W176) with M 270.920 Engine
2012-18 Mercedes-Benz B-Class Sports Tourer (W246, W242) with M 270.920 Engine
2012-19 Mercedes-Benz CLA-Class with M270910 Engine
2012-19 Mercedes-Benz GLA-Class with M270910 Engine
2013- Mercedes-Benz GLA-Class (X156) with M 270.920 Engine
2013-18 Mercedes-Benz A-Class (W176) with M 270.920 Engine
2013-19 Mercedes-Benz CLA Coupe (C117) with M 270.920 Engine
2014-18 Mercedes-Benz A-Class (W176) with M 270.920 Engine
2014-18 Mercedes-Benz B-Class Sports Tourer (W246, W242) with M 270.920 Engine
2015-18 Mercedes-Benz A-Class (W176) with M 270.920 Engine
2015-19 Mercedes-Benz CLA Coupe (C117) with M 270.920 Engine
2015-19 Mercedes-Benz CLA Shooting Brake (X117) with M 270.920 Engine
2016-19 Mercedes-Benz CLA Coupe (C117) with M 270.920 Engine
2016-19 Mercedes-Benz CLA Shooting Brake (X117) with M 270.920 Engine
2017- Mercedes-Benz GLA-Class (X156) with M 270.920 Engine
TurboTurbos Part Number: TP06-0216-32
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
