NEW TF035HM Turbo Isuzu Johnson Evinrude OMC Mercury Marine 4EE2-TMC 49135-00102

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

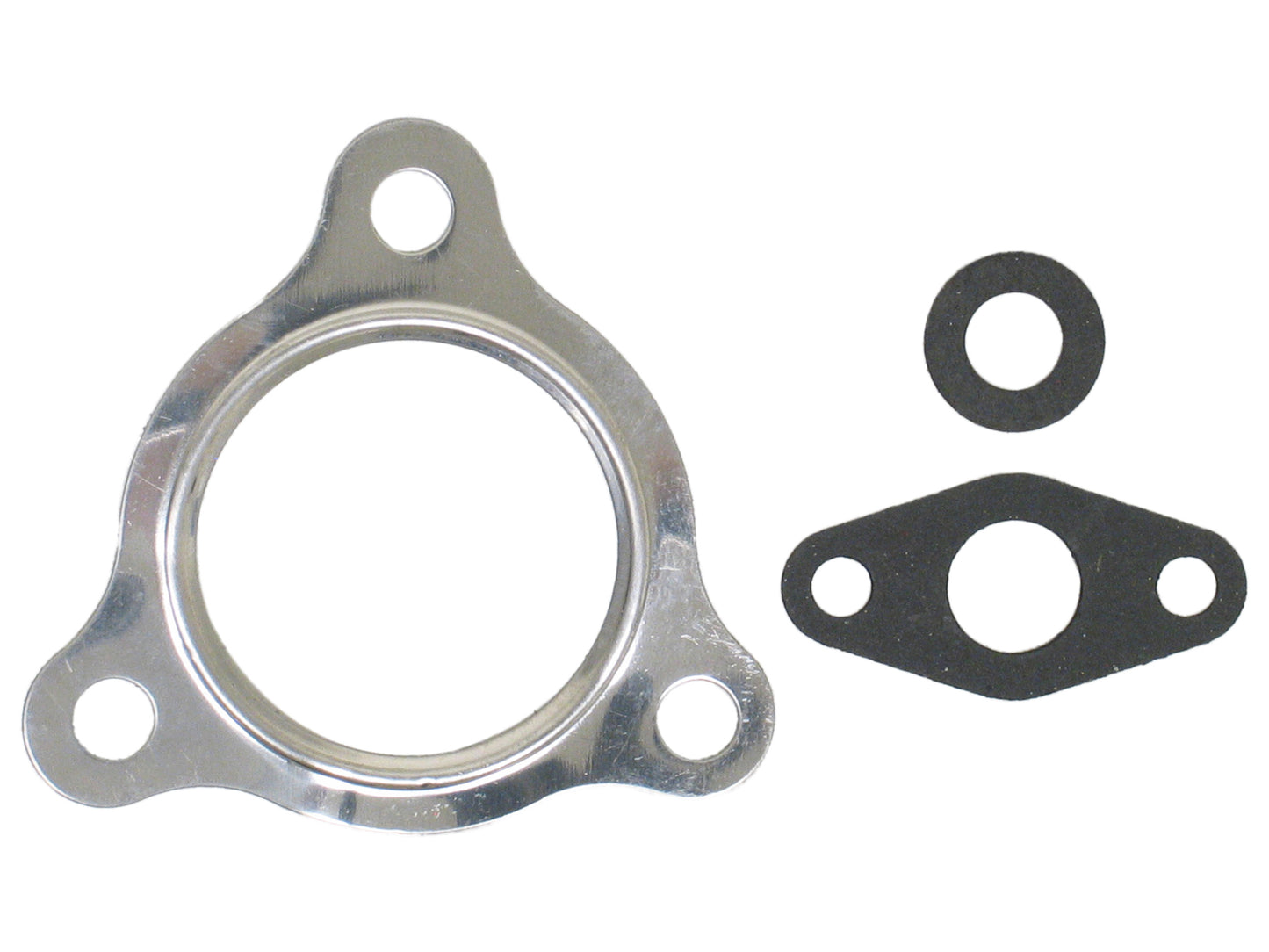

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 49135-00102
Interchangeable Number: 4913500102, 49135-00100, 4913500100, 49135-00101, 4913500101, 49135-00110, 4913500110, 49135-00112, 4913500112, 49135-00120, 4913500120
OEM Number: 8972476492, 8972476493, 8972476494, 8972619990, 8980023450
Turbo Model: TF035HM, TF035HM-10T-3.0

Year: 2001-05
Engine: 4EE, 4EE2-TMC
Engine Manufacturer: Isuzu
Displacement: 1.7L, 1700 ccm
Fuel: Diesel
Power: 120 HP

Actuator Pressure (P1): 153.3 +/- 4 kPa, 1150 +/- 30 mmHg, 22.23 PSI
Actuator Pressure (P2): 176.3 +/- 6.7 kPa, 1322 +/- 50 mmHg, 25.57 PSI
Actuator: 49135-19011/49135-19020
Back Plate: 49135-00044 (49135-15405, 49173-22500)(1401635300, 1800016016)
Bearing Housing: 49177-20110
Bearing Housing: 49177-25100 (Oil Cooled)(1401404450, 1900011152)
CHRA: 49135-08710 (4913508710, 49135-08711)(1401635910)
Compressor Housing: 49135-54191/49135-54101
Compressor Wheel: 49177-44200 (Ind. 35.5 mm, Exd. 49 mm, Trim 4.49, 6+6 Blades, Super Back)
Cooling: Air
Gasket (Oil Outlet): 210243 (Gasket Paper)
Gasket (Turbine Inlet): 210346 (Stainless Steel)
Gasket (Turbine Outlet): 210568 (Stainless Steel)
Heat Shield: 49135-19100 (49135-00020)(1401404342, 1401404340)(8 mm Deep)
Repair Kit: 49135-80000/49177-80410 (1401404755)
Turbine Housing A/R: 3.0
Turbine Housing: 49135-14191/49135-14101
Turbine Wheel: 49135-30100 (Ind. 43.2 mm, Exd. 36.09 mm, Trim 6.2, 11 Blades)(1401635435, 1100030027, 1100016197)
Wastegate Settings (Lift Rod): 1.00 mm
Wastegate Settings (Pressure): 0.232-0.235 bar

NOTE: Wastegated.

Application:
2001-05 Isuzu Marine with 4EE2-TMC Engine
2001-05 Mercury Marine with 4EE2-TMC Engine
Johnson, Evinrude, OMC Marine with 4EE2-TMC Engine

TurboTurbos Part Number: TP07-0158-36

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
